SELECT A DIAGRAM

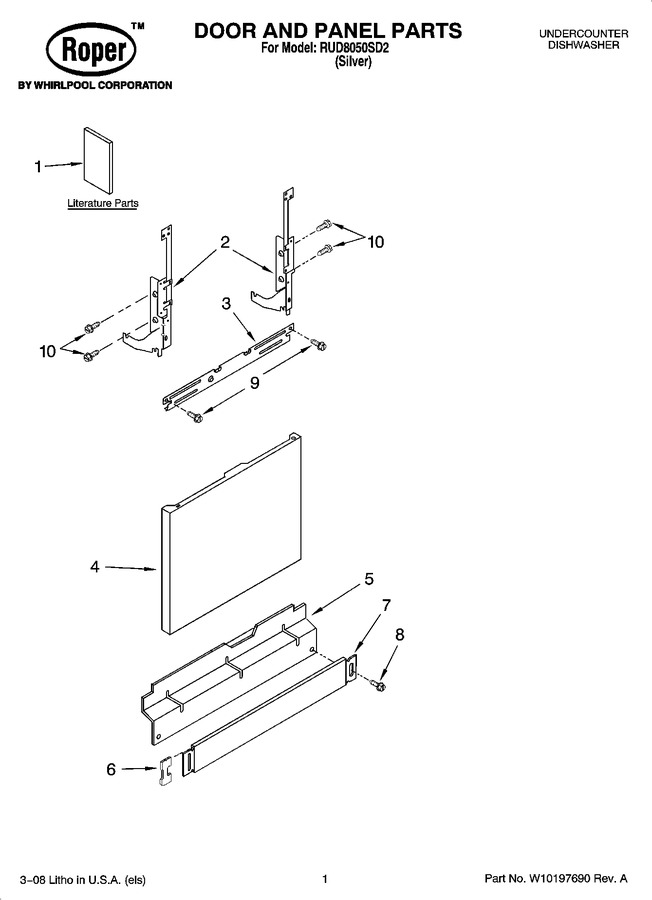

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130990		Tech Sheet		Appelez-nous	-
1	W10193558		Energy Guide		Appelez-nous	-
1	W10130983		Guide, Use & Care English/french		Appelez-nous	-
1	W10133158		Guide, Use & Care Spanish		Appelez-nous	-
1	8575348		Instructions, Installation		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 83.93
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 71.77
3	8268983		Stiffener, Door				$ 38.77
4	8576208		Panel Front (ultimate Silver)		Appelez-nous	-
5	W11763736		Access Panel   (Replaces: 8573255)			Immediately	$ 42.25
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
7	W10871196		Toe Panel (includes 6)   (Replaces: 8573286)				$ 174.04
8	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
9	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
