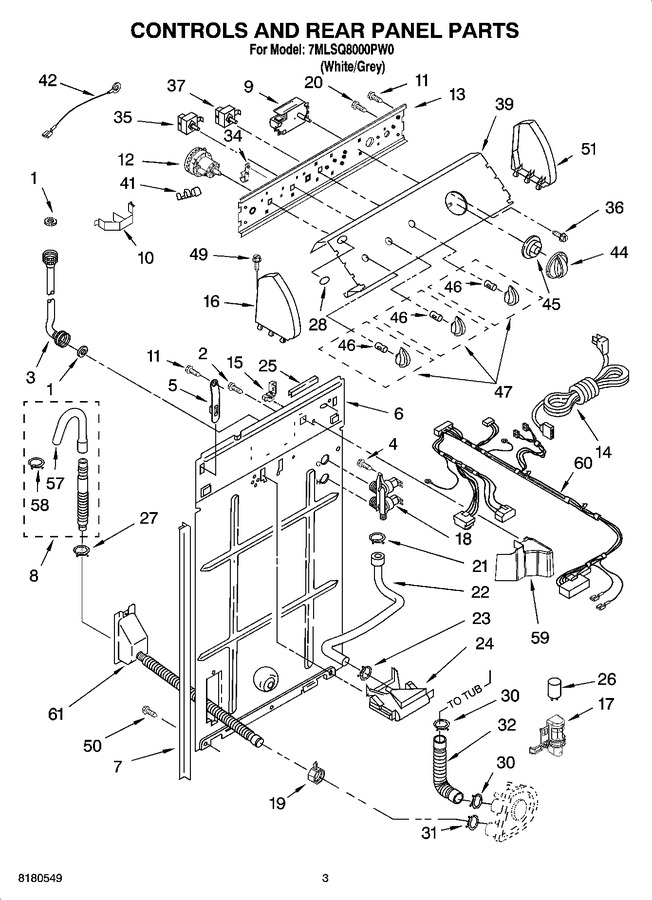

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Miscellaneous Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 7.70
2	WP3351614		Screw, 10-24 X 3/8   (Replaces: 3351614)			Immediately	$ 6.95
3	WP89503		Hose, Water Inlet ((blue Coupler))   (Replaces: 3949374)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet ((red Coupler))   (Replaces: 3949375)			Immediately	$ 24.09
4	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 7.78
6	8318405		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 60.90
9	WP3953553		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3953553)			Immediately	$ 401.79
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339326		Switch, Water Level   (Replaces: 3366845)			Immediately	$ 87.97
13	8544893		Bracket, Control				$ 62.87
14	8532158		Cord, Power (includes Item 15)		Appelez-nous	-
15	3949468		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.)		Appelez-nous	-
17	8318046		Clip, Capacitor				$ 79.31
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
19	3976395		Clamp, Hose				$ 11.96
20	3179795		Screw, Ground		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	303294		Edge Protector		Appelez-nous	-
26	WP8572717		Capacitor, Motor Start   (Replaces: 661606)			Immediately	$ 80.14
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
28	3400985		Medallion		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 26.68
34	8317975		Retainer, Harness				$ 5.86
35	3949185		Switch, Water Temperature				$ 181.19
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 129.76
39	8565447		Panel, Console (includes Item 28)		Appelez-nous	-
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
44	8544945		Knob, Timer				$ 38.06
45	WP8544947		Dial, Timer   (Replaces: 8544947)				$ 86.13
46	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
47	8544937		Knob, Control				$ 24.98
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
51	8271363		Cap, End (r.h.)		Appelez-nous	-
57	WP3357027		Nozzle, Hose Drain   (Replaces: 3357027)				$ 93.20
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 7.56
59	8314879		Shield, Inlet Valve		Appelez-nous	-
60	3957264		Harness, Wiring (for Detail See Pages 9 & 10.)		Appelez-nous	-
61	WPW10358149		Drain Hose Assembly   (Replaces: 8317940)			Immediately	$ 48.16
