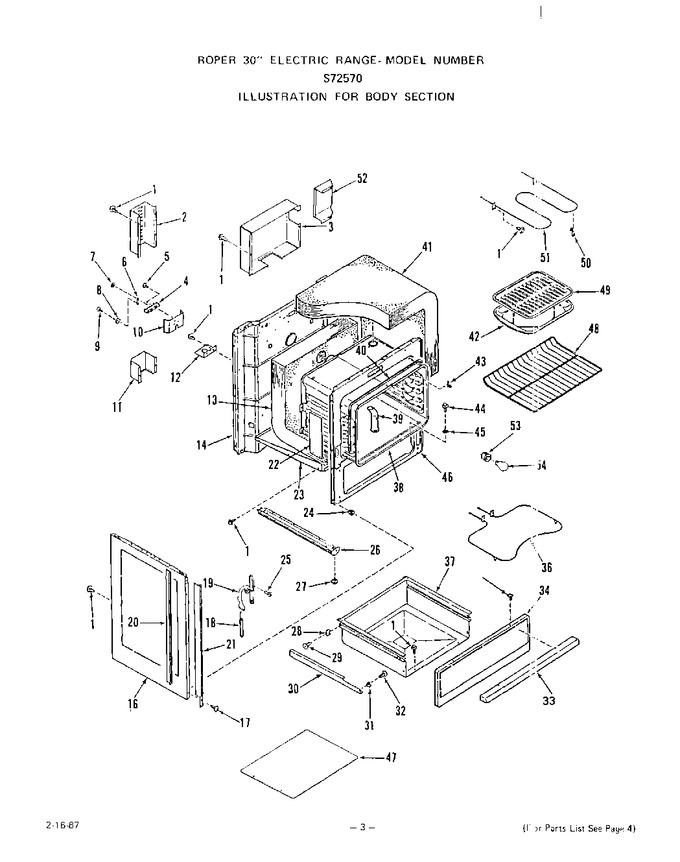

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327235		Wire Cover-upper		Appelez-nous	-
3	333128		Wire Shield		Appelez-nous	-
4	290105		Junction Block		Appelez-nous	-
5	313190		Screw 10-32x1``		Appelez-nous	-
6	327255		Ground Strap		Appelez-nous	-
7	97816		Hex Nut 10-32		Appelez-nous	-
8	299425		Washer		Appelez-nous	-
9	313191		Screw 10-32x7/16``		Appelez-nous	-
10	327242		Service Cord Insulator		Appelez-nous	-
11	327258		Wire Shield-lower		Appelez-nous	-
12	327259		Service Cord Mounting Plate		Appelez-nous	-
13	326049		Insulation-back & Bottom		Appelez-nous	-
14	330675		Main Back		Appelez-nous	-
16	336447		Body Side (lt. Or Rt.) - Black		Appelez-nous	-
17	314124		Screw 8abx5/8``		Appelez-nous	-
18	334722		Oven Door Spring (lt. Or Rt.)		Appelez-nous	-
19	334632		Right		Appelez-nous	-
19	334633		Left		Appelez-nous	-
20	331512		Side Trim Extension		Appelez-nous	-
21	330341		Right		Appelez-nous	-
21	330340		Left		Appelez-nous	-
22	328984		Insulation Retainer-side (lt. Or Rt.)		Appelez-nous	-
23	328984		Insulation Retainer-lower		Appelez-nous	-
24	330031		Expansion Nut Spacer   (Replaces: 312605)			Immediately	$ 19.92
25	331704		Screw		Appelez-nous	-
26	336546		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
27	326052		Leg Leveler (4 Req)		Appelez-nous	-
28	281913		Slide Block-rear		Appelez-nous	-
29	DE81-02123A		Screw 8 - 32 X 3/8``   (Replaces: 102563)				$ 1.84
30	311441		Storage Drawer Support (lt. Or Rt.)		Appelez-nous	-
31	281914		Slide Block-front		Appelez-nous	-
32	295849		Screw 10-32x17/32``		Appelez-nous	-
33	332205		Handle		Appelez-nous	-
34	336483		Storage Drawer Panel - Black		Appelez-nous	-
35	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
36	326366		208 Volt		Appelez-nous	-
36	WG02F05414		240 Volt   (Replaces: 326365)			Immediately	$ 124.43
37	296150		Storage Drawer		Appelez-nous	-
38	333779		Oven Body		Appelez-nous	-
39	330736		Vent Tube		Appelez-nous	-
40	314062		Oven Door Seal		Appelez-nous	-
41	326040		Insulation-top & Sides		Appelez-nous	-
42	331592		Broiler Pan		Appelez-nous	-
43	335535		Capillary Tube Clip		Appelez-nous	-
44	326974		Screw 10abx1/2``		Appelez-nous	-
45	21067		Washer		Appelez-nous	-
46	336373		Front Frame		Appelez-nous	-
47	331867		Oven Bottom Liner		Appelez-nous	-
48	326068		Oven Rack		Appelez-nous	-
49	326297		Broiler Pan Grid		Appelez-nous	-
50	324808		Broil Element Support		Appelez-nous	-
51	334369		208 Volt		Appelez-nous	-
51	334368		240 Volt		Appelez-nous	-
52	327808		Wire Shield		Appelez-nous	-
53	87883		Bulb Holder		Appelez-nous	-
54	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
