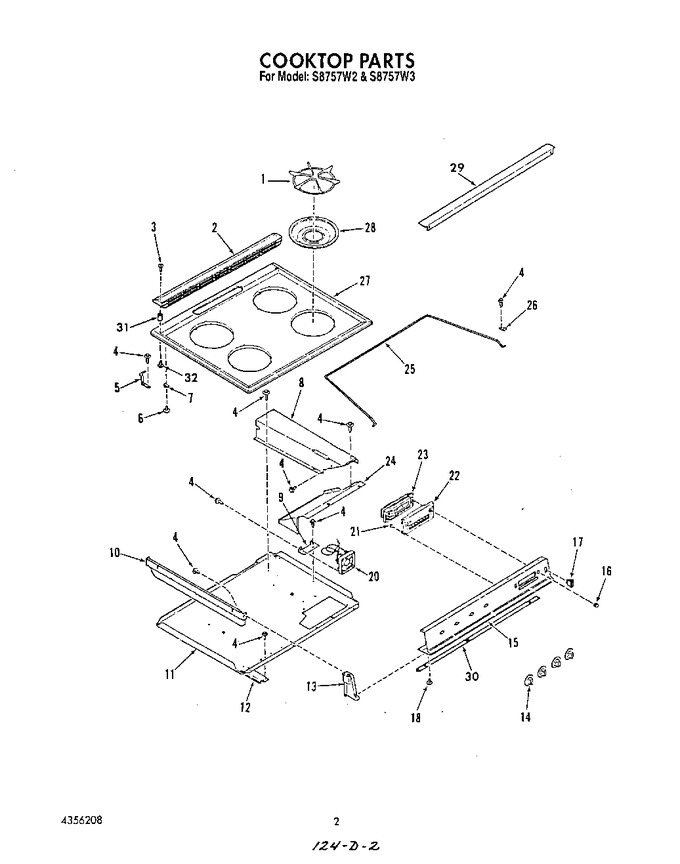

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4336234		Grate, Burner (4)		Appelez-nous	-
2	4336403		Vent Cover		Appelez-nous	-
3	4323701		Screw No.6-32x1/2		Appelez-nous	-
4	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
5	4337342		Hinge (right)		Appelez-nous	-
5	4337343		Hinge (left)		Appelez-nous	-
6	4326322		Screw, No.10-32 X 5/16		Appelez-nous	-
7	4337447		Bracket, Hinge		Appelez-nous	-
8	4343120		Fan Duct		Appelez-nous	-
9	4338067		Bracket, Fan		Appelez-nous	-
10	4343121		Extension, Side		Appelez-nous	-
11	4342823		Bottom, Burner Box		Appelez-nous	-
12	4338119		Support, Bottom (right)		Appelez-nous	-
12	4336361		Support, Bottom (left)		Appelez-nous	-
13	4336266		End Cap (left)		Appelez-nous	-
13	4336267		End Cap (right)		Appelez-nous	-
14	4337754		Knob, Gas Valve (4)		Appelez-nous	-
15	4337746		Manifold Panel		Appelez-nous	-
16	4338513		Knob, Clock		Appelez-nous	-
17	WP4314961		Switch   (Replaces: 4337275)				$ 84.56
18	4332521		Screw No.10-32x1/2		Appelez-nous	-
20	4337779		Fan		Appelez-nous	-
21	4323476		Screw		Appelez-nous	-
22	4342950		Lens, Clock				$ 99.57
23	4342969		Control, Clock, Oven (model S8757-3)		Appelez-nous	-
23	4338409		Control, Clock, Oven (model S8757-2)		Appelez-nous	-
24	4338070		Wire Cover		Appelez-nous	-
25	4337663		Support Rod		Appelez-nous	-
26	4338000		Clamp		Appelez-nous	-
27	4337347		Cooktop (white)		Appelez-nous	-
27	4337348		Cooktop (almond)		Appelez-nous	-
27	4337750		Cooktop (chrome)		Appelez-nous	-
28	4337751		Aeration Pan		Appelez-nous	-
29	4337492		Filler Trim		Appelez-nous	-
30	4338638		Barrier		Appelez-nous	-
31	4337069		Spacer, Vent Cover		Appelez-nous	-
32	4348187		Model S8757-2		Appelez-nous	-
32	4348184		Model S8757-2		Appelez-nous	-
32	4328072		Screw No.6-32x5/16		Appelez-nous	-
32	4356206		Model S8757-3		Appelez-nous	-
32	4356207		Model S8757-3		Appelez-nous	-
