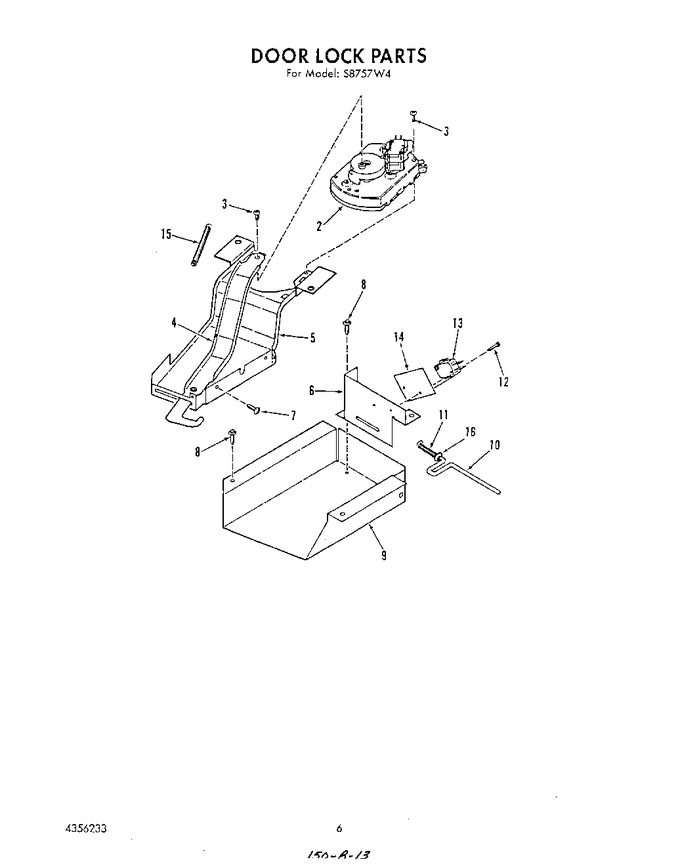

04 - Door Lock


05 - Cooktop Burner


06 - Broiler And Oven Burner


07 - Oven Door


08 - Backsplash, Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4343039		Lock Motor Asm.		Appelez-nous	-
3	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
4	4338225		Lock Lever Asm.		Appelez-nous	-
5	4338210		Door Lock Plate		Appelez-nous	-
6	4343145		Bracket, Switch		Appelez-nous	-
7	4332521		Screw No.10-32x1/2		Appelez-nous	-
8	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
9	4335716		Lock Box		Appelez-nous	-
10	4338149		Actuator Pin		Appelez-nous	-
11	4338171		Spring		Appelez-nous	-
12	4343068		Screw		Appelez-nous	-
13	4337116		Micro Switch		Appelez-nous	-
14	4335973		Insulator		Appelez-nous	-
15	4338207		Lock Spring		Appelez-nous	-
16	4337415		Washer		Appelez-nous	-
