View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

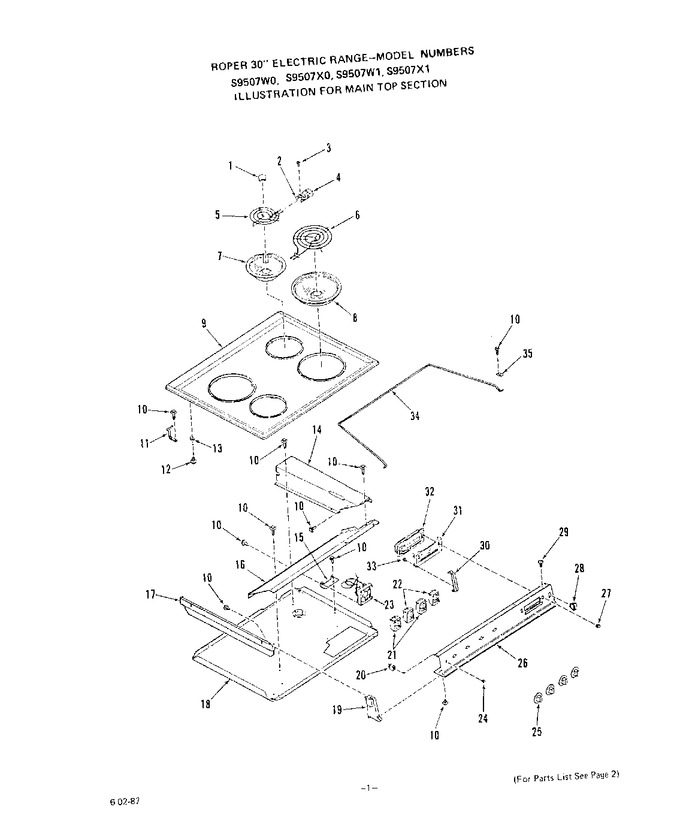

02 - Main Top
03 - Body
04 - Power Lock
05 - Oven Door
06 - Wire Harness, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318586 | Medallion |
|
- | |||||
| 2 | 318872 | Terminal Block Clip |
|
- | |||||
| 3 | 299632 | Screw 7-32x7/16`` |
|
- | |||||
| 4 | 318871 | Terminal Blcok W/wires |
|
- | |||||
| 5 | PS15-4BK | Surface Element 6`` (lt. Front & Rt. Rear) (Replaces: 325510) |
|
Immediately | $ 35.96 | ||||
| 6 | PS26-4BK | Surface Element 8`` (lt. Rear & Rt. Front) (Replaces: 325506) |
|
Immediately | $ 40.46 | ||||
| 7 | 292974 | Burner Bowl 6`` |
|
- | |||||
| 8 | 292974 | Burner Bowl 8`` |
|
- | |||||
| 9 | 336480 | Main Top (chrome) |
|
- | |||||
| 9 | 334873 | Main Top (white) |
|
- | |||||
| 9 | 334874 | Main Top (almond) |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 334844 | Main Top Hinge (right) |
|
- | |||||
| 11 | 334843 | Main Top Hinge (left) |
|
- | |||||
| 12 | 286628 | Screw 10-32x5/16`` |
|
- | |||||
| 13 | 335161 | Hinge Bracket |
|
- | |||||
| 14 | 337486 | Fan Duct |
|
- | |||||
| 15 | 337484 | Fan Bracket |
|
- | |||||
| 16 | 337488 | Wire Cover |
|
- | |||||
| 17 | 336365 | Body Side Extention |
|
- | |||||
| 18 | 336488 | Burner Box Bottom |
|
- | |||||
| 19 | 330344 | End Cap (left) |
|
- | |||||
| 19 | 330345 | End Cap (right) |
|
- | |||||
| 20 | 331717 | Indicator Light |
|
- | |||||
| 21 | 324608 | Indicator Control |
|
- | |||||
| 22 | 324609 | Infinite Control |
|
- | |||||
| 23 | 336471 | Fam Asm |
|
- | |||||
| 24 | 331705 | Lens-indicator Light |
|
- | |||||
| 25 | 336379 | Knob-infinite |
|
- | |||||
| 26 | 336357 | Control Panel |
|
- | |||||
| 27 | 334961 | Knob-clock |
|
- | |||||
| 28 | 334649 | Oven Light Switch |
|
- | |||||
| 29 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 30 | 336354 | Bracket-clock |
|
- | |||||
| 31 | 337365 | Clock Lens (s9507w0-s9507x0 Models) |
|
- | |||||
| 31 | 337632 | Clock Lens (s9507w1-s9507x1 Models) |
|
- | |||||
| 32 | 337632 | Clock (s9507w1-s9507x1 Models) |
|
- | |||||
| 32 | 337088 | Clock (s9507w0-s9597x0 Models) |
|
- | |||||
| 33 | 78153 | Screw 6-32x5/16`` |
|
- | |||||
| 34 | 336079 | Main Top Support |
|
- | |||||
| 35 | 336407 | Installation Guide |
|
- | |||||
| 35 | 336497 | Use & Care |
|
- | |||||
| 35 | 337251 | Main Top Support.clamp |
|
- | |||||
| 35 | 336674 | Repair Parts List |
|
- |
