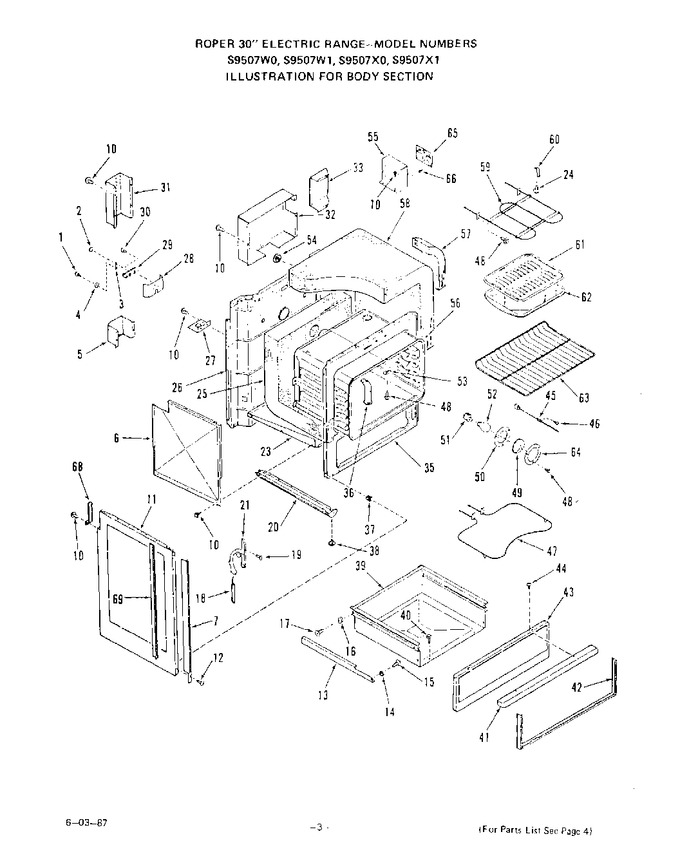

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313191 | Screw 10-32x7/16`` |
|
- | |||||
| 2 | 097816 | Hex Nut 10-32 |
|
- | |||||
| 3 | 327255 | Ground Strap |
|
- | |||||
| 4 | 299425 | Washer |
|
- | |||||
| 5 | 327258 | Wire Shield-lower |
|
- | |||||
| 6 | 336477 | Insulation Retainer (right) |
|
- | |||||
| 6 | 312518 | Insulation Retainer (left) |
|
- | |||||
| 7 | 330340 | Side Trim (left) |
|
- | |||||
| 7 | 330341 | Side Trim (right) |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 337204 | Body Side (right) |
|
- | |||||
| 11 | 337205 | Body Side (left) |
|
- | |||||
| 12 | 326974 | Screw 10ab |
|
- | |||||
| 13 | 311441 | Storage Drawer Support (lt. Or Rt.) |
|
- | |||||
| 14 | 281914 | Slide Block-front (lt. Or Rt.) |
|
- | |||||
| 15 | 295849 | Screw 10-32x17/32`` |
|
- | |||||
| 16 | 281913 | Slide Block-rear (lt. Or Rt.) |
|
- | |||||
| 17 | DE81-02123A | Screw 8 - 32 X 3/8`` (Replaces: 102563) |
|
$ 1.66 | |||||
| 18 | 334726 | Oven Door Spring |
|
- | |||||
| 19 | 331704 | Screw |
|
- | |||||
| 20 | 336546 | Base W/levers (lt. Or Rt.) |
|
- | |||||
| 21 | 336633 | Oven Door Hinge (left) |
|
- | |||||
| 21 | 336632 | Oven Door Hinge (right) |
|
- | |||||
| 23 | 312517 | Insulation Retainer-bottom |
|
- | |||||
| 24 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 25 | 308861 | Insulation-oven Bottom & Back (1 Piece) |
|
- | |||||
| 26 | 337207 | Main Back |
|
- | |||||
| 27 | 327259 | Range Service Mounting Plate |
|
- | |||||
| 28 | 327242 | Service Cord Insulation |
|
- | |||||
| 29 | 290105 | Junction Block |
|
- | |||||
| 30 | 313190 | Screw 10-32x1`` |
|
- | |||||
| 31 | 327235 | Wire Shield |
|
- | |||||
| 32 | 337201 | Upper Wire Shield |
|
- | |||||
| 33 | 327808 | Wire Shield |
|
- | |||||
| 35 | 336377 | Front Frame |
|
- | |||||
| 36 | 330735 | Vent Tube |
|
- | |||||
| 37 | 330031 | Expansion Nut (Replaces: 312605) |
|
Immediately | $ 17.93 | ||||
| 38 | 326052 | Leg Leveler (4 Req) |
|
- | |||||
| 39 | 296150 | Storage Drawer |
|
- | |||||
| 40 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 41 | 332205 | Handle |
|
- | |||||
| 42 | 332161 | Storage Drawer |
|
- | |||||
| 43 | 336483 | Front Panel-storage Drawer |
|
- | |||||
| 44 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 45 | 12001656 | Sensor (Replaces: 334300) |
|
Immediately | $ 45.13 | ||||
| 46 | 336152 | Screw |
|
- | |||||
| 47 | 240 | Bake Element (volt) |
|
- | |||||
| 47 | 208 | Bake Element (volt.(optional)) |
|
- | |||||
| 48 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 49 | 114989 | Oven Lamp Lens |
|
- | |||||
| 50 | 229371 | Lens Gasket |
|
- | |||||
| 51 | 87883 | Oven Lamp Holder |
|
- | |||||
| 52 | DA96-01243C | Oven Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 53 | 304835 | Cover |
|
- | |||||
| 54 | 333866 | Snap Bushing |
|
- | |||||
| 55 | 336543 | Relay Cover |
|
- | |||||
| 56 | 337043 | Oven Body |
|
- | |||||
| 57 | 316951 | Insulation (rt. Or Lt.) |
|
- | |||||
| 58 | 308860 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 59 | 334369 | Broil Element (208 Volt.(optional)) |
|
- | |||||
| 59 | 334368 | Broil Element (240 Volt) |
|
- | |||||
| 60 | 324808 | Broil Element Support |
|
- | |||||
| 61 | 326297 | Broiler Pan Grid |
|
- | |||||
| 62 | 331592 | Broiler Pan |
|
- | |||||
| 63 | 326069 | Oven Rack (2 Req) |
|
- | |||||
| 64 | 299372 | Oven Light Lens Retainer |
|
- | |||||
| 65 | 337672 | Circuit Relay Board (s9507w0-s9507x0) |
|
- | |||||
| 65 | WB27X425 | Circuit Relay Board (s9507w1-s9507x1) (Replaces: 337633) |
|
- | |||||
| 66 | 334955 | Curcuit Board Spacer |
|
- | |||||
| 68 | 337249 | Body Side Filler |
|
- | |||||
| 69 | 331512 | Side Trim Extention |
|
- |
