SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Optional Parts (not Included)

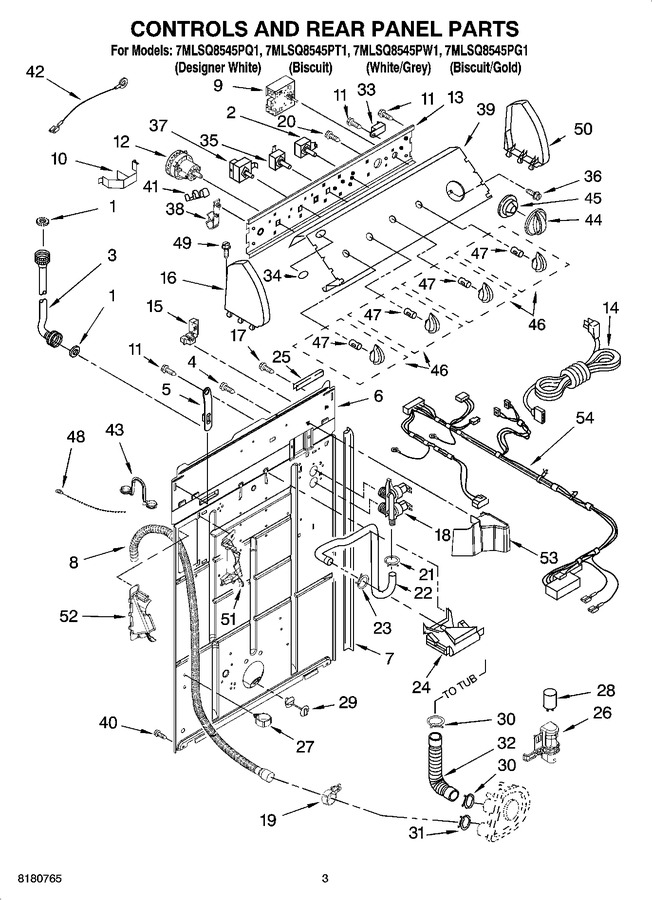

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 129.76
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
4	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 19 & 27   (Replaces: 8559373)			Immediately	$ 67.38
9	WP3951702		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3951702)				$ 416.18
10	8055003		Clip, Harness & Pressure Hose				$ 36.24
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10335056		Switch, Water Level   (Replaces: 3366846)			Immediately	$ 91.84
13	8544893		Bracket, Control				$ 62.87
14	WP8559419		Cord, Power (includes Item 15)   (Replaces: 8559419)				$ 124.41
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8271369		Cap, End (l.h.) (white)		Appelez-nous	-
16	8314852		Cap, End (l.h.) (biscuit)		Appelez-nous	-
17	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
19	8541668		Clamp, Hose				$ 21.26
20	3179795		Screw, Ground		Appelez-nous	-
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	303294		Edge Protector		Appelez-nous	-
26	8318046		Clip, Capacitor				$ 79.31
27	8541667		Clamp, Hose				$ 5.86
28	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
29	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 26.68
33	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 127.67
34	3400985		Medallion		Appelez-nous	-
35	WPW10168257		Switch-rotary   (Replaces: 3949180)				$ 133.33
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	661614		Switch, Water Temperature				$ 56.07
38	8317975		Retainer, Harness				$ 5.86
39	8539646		Panel, Console (includes Item 34) (biscuit)		Appelez-nous	-
39	8546304		Panel, Console (includes Item 34) (gold)		Appelez-nous	-
39	8565452		Panel, Console (includes Item 34) (silver)		Appelez-nous	-
39	8539645		Panel, Console (includes Item 34) (white)		Appelez-nous	-
40	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
41	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
42	3398893		Wire, Ground		Appelez-nous	-
43	WP8577378		U-bend, Drain Hose   (Replaces: 8541672)				$ 7.97
44	8544943		Knob, Timer (white)				$ 38.06
44	8544944		Knob, Timer (biscuit)				$ 47.63
44	8544946		Knob, Timer (gold)				$ 36.25
44	8544945		Knob, Timer (silver)				$ 38.06
45	WP8544947		Dial, Timer (white)   (Replaces: 8544947)				$ 86.13
45	8544948		Dial, Timer (biscuit)		Appelez-nous	-
46	8544936		Knob, Control (biscuit)		Appelez-nous	-
46	8544937		Knob, Control (silver)				$ 24.98
46	8544938		Knob, Control (gold)				$ 22.73
46	8544935		Knob, Control (white)		Appelez-nous	-
47	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
48	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	8271363		Cap, End (r.h.) (white)		Appelez-nous	-
50	8314851		Cap, End (r.h.) (biscuit)		Appelez-nous	-
51	WPW10096921		Bucket, Drain Hose   (Replaces: 8541669)			Immediately	$ 67.38
52	WPW10096921		Bucket, Drain Hose   (Replaces: 8541658)			Immediately	$ 67.38
53	8314879		Shield, Inlet Valve		Appelez-nous	-
54	3956735		Harness, Wiring (for Detail See Pages 9 & 10)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
