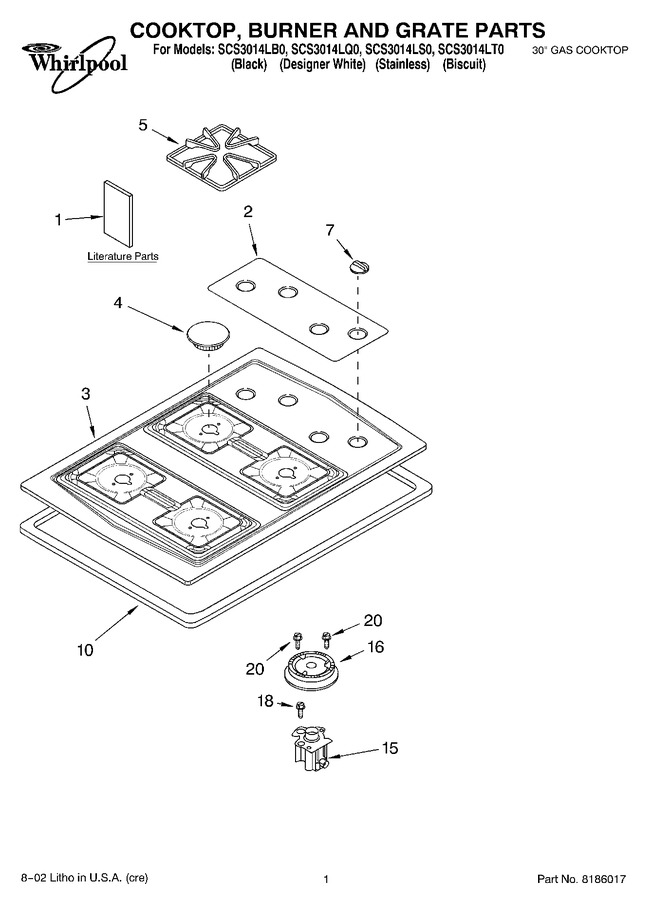

01 - Cooktop, Burner And Grate
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3192098 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT4455834 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8285326 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT3192742 | Literature Parts (lp Conversion Instructions) |
|
- | |||||
| 2 | 8285092 | Panel, Control (biscuit) |
|
- | |||||
| 2 | 8285090 | Panel, Control (black) |
|
- | |||||
| 2 | 8285091 | Panel, Control (white) |
|
- | |||||
| 3 | W11230936 | Cooktop (stainless) (Replaces: 3191288) |
|
$ 440.01 | |||||
| 3 | 8284705 | Cooktop (biscuit) |
|
- | |||||
| 3 | WP3191242 | Cooktop (black) (Replaces: 3191242) |
|
$ 316.09 | |||||
| 3 | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 326.58 | |||||
| 4 | WP3191904 | Cap, Burner 6k (1) (black) (Replaces: 3191904) |
|
$ 184.16 | |||||
| 4 | WP8273343 | Cap, Burner 6k (1) (espresso) (Replaces: 8273343) |
|
$ 90.90 | |||||
| 4 | WP3191901 | Cap, Burner 6k (1) (black) (Replaces: 3191901) |
|
$ 128.91 | |||||
| 4 | WP8273344 | Cap, Burner 6k (1) (espresso 9.5k) (Replaces: 8273344) |
|
$ 102.05 | |||||
| 4 | 3191899 | Cap, Burner 6k (1) (gray 9.5k (2)) |
|
$ 31.21 | |||||
| 4 | WP3191898 | Cap, Burner 6k (1) (black) (Replaces: 3191898) |
|
$ 71.00 | |||||
| 4 | WP8273345 | Cap, Burner 6k (1) (espresso 12.5k) (Replaces: 8273345) |
|
$ 168.46 | |||||
| 4 | WP3191905 | Cap, Burner 6k (1) (gray) (Replaces: 3191905) |
|
$ 90.98 | |||||
| 4 | WP3191903 | Cap, Burner 6k (1) (gray 12.5k (1)) (Replaces: 3191903) |
|
$ 191.50 | |||||
| 5 | WPW10447925 | Grate (4) (black) (Replaces: 8522851) |
|
Immediately | $ 299.55 | ||||
| 5 | 8522853 | Grate (4) (espresso) |
|
$ 0.01 | |||||
| 5 | WPW10447925 | Grate (4) (gray) (Replaces: 8522850) |
|
Immediately | $ 299.55 | ||||
| 7 | 8285072 | Knob, Control (4) (white) |
|
- | |||||
| 7 | 8285073 | Knob, Control (4) (biscuit) |
|
- | |||||
| 7 | 8285068 | Knob, Control (4) (black) |
|
$ 39.24 | |||||
| 10 | 3193090 | Seal, Foam |
|
- | |||||
| 15 | 9754187 | Holder, Orifice (includes 13 & 14) (lf 12k) |
|
- | |||||
| 15 | 9754182 | Holder, Orifice (includes 13 & 14) (rf 6k) |
|
- | |||||
| 15 | 9754186 | Holder, Orifice (includes 13 & 14) (lr, Rr 9k) |
|
- | |||||
| 16 | WP4455980 | Head, Burner (lr, Rr) (Replaces: 4455980) |
|
$ 65.21 | |||||
| 16 | WP4455981 | Head, Burner (lf) (Replaces: 4455981) |
|
Immediately | $ 91.90 | ||||
| 16 | 4455979 | Head, Burner (rf) |
|
$ 28.52 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 20 | 3192230 | Harness, Wire Ignitor (28``) |
|
- | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 20 | 3192229 | Harness, Wire Ignitor (15``) |
|
- |
