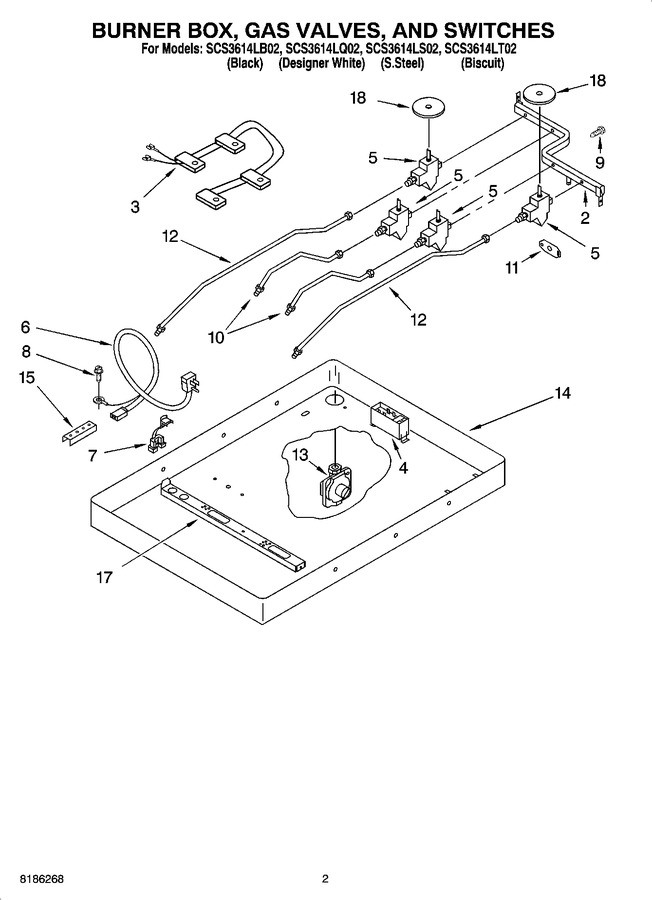

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9759354		Pipe, Manifold				$ 170.70
2	W10491985		Screw (2)   (Replaces: 3196160)			Immediately	$ 7.55
3	WP4456905		Harness & Switches   (Replaces: 4456905)			Immediately	$ 196.48
4	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 8.76
4	WPW10110491		Module, Spark   (Replaces: 8522423)			Immediately	$ 322.41
4	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
5	WP4456816		Valve, Burner (small (1))   (Replaces: 4456816)				$ 334.31
5	WP4456817		Valve, Burner (large (3))   (Replaces: 4456817)				$ 334.11
6	W10392007		Power Cord   (Replaces: 3192231)				$ 112.29
7	4173634		Bushing, Cord				$ 6.80
8	WP3177991		Screw, Ground   (Replaces: 3177991)			Immediately	$ 7.55
9	3185829		Bolt (gas Valve)		Appelez-nous	-
10	3191318		Tubing, Burner Rr & Rf				$ 114.31
11	3192491		Bracket, Manifold		Appelez-nous	-
12	3191322		Tubing, Burner Lr & Lf		Appelez-nous	-
13	4454571		Regulator, Pressure				$ 108.68
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
14	4456781		Box, Burner		Appelez-nous	-
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
15	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 92.86
15	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
17	W10203756		Rail, Burner (2)   (Replaces: 3191557)		Appelez-nous	-
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	WP3188425		Seal, (4) Switch Cover   (Replaces: 3191387)				$ 96.38
	WP3192741		Orifice/spud Pack   (Replaces: 3192741)				$ 48.77
	4455918		Hardware Kit (mounting)		Appelez-nous	-
	N/A		Following Parts Not Illustrated And Optional Parts Not Included		Appelez-nous	-
