01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts

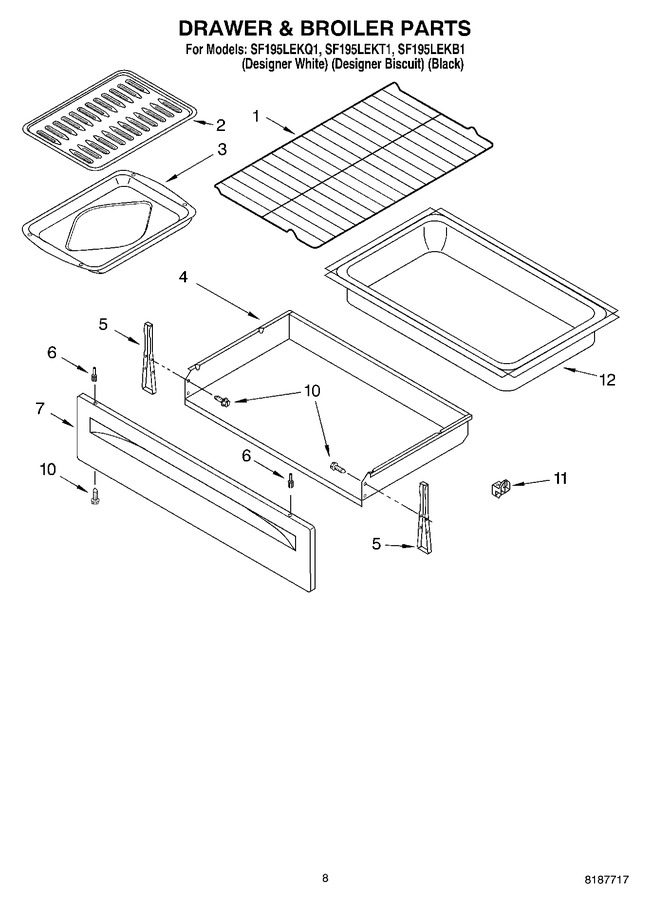

06 - Drawer & Broiler Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 98.65 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 330.36 | |||||
| 4 | 8053343 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 28.27 | |||||
| 6 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: 8053338) |
|
$ 211.59 | |||||
| 7 | W11230473 | Panel, Drawer Front (biscuit) (Replaces: 8272502) |
|
- | |||||
| 7 | W11230486 | Panel, Drawer Front (white) (Replaces: 8053336) |
|
$ 211.49 | |||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 11 | WP8053334 | Spacer (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 12 | 8272528 | Drawer, Storage |
|
- | |||||
| 814381 | Pin Kit-dr Removal |
|
$ 11.28 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| 3195927 | Tie,wire |
|
- | ||||||
| 8053527 | Clip, Wire |
|
- | ||||||
| N/A | Miscellaneous |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 87.22 | |||||
| 261582 | Grease |
|
- | ||||||
| 8273888A | Anti-tip Kit (Replaces: 3176830) |
|
$ 32.62 | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 27.77 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 51.75 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 8523427 | Harness, Wire (main) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 8273901 | Harness, Wire Bake / Broil |
|
$ 69.23 | ||||||
| 8523599 | Harness, Wire (cooktop Spark) |
|
$ 146.57 | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 3196896 | Clamp, Cable |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
