SELECT A DIAGRAM

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts

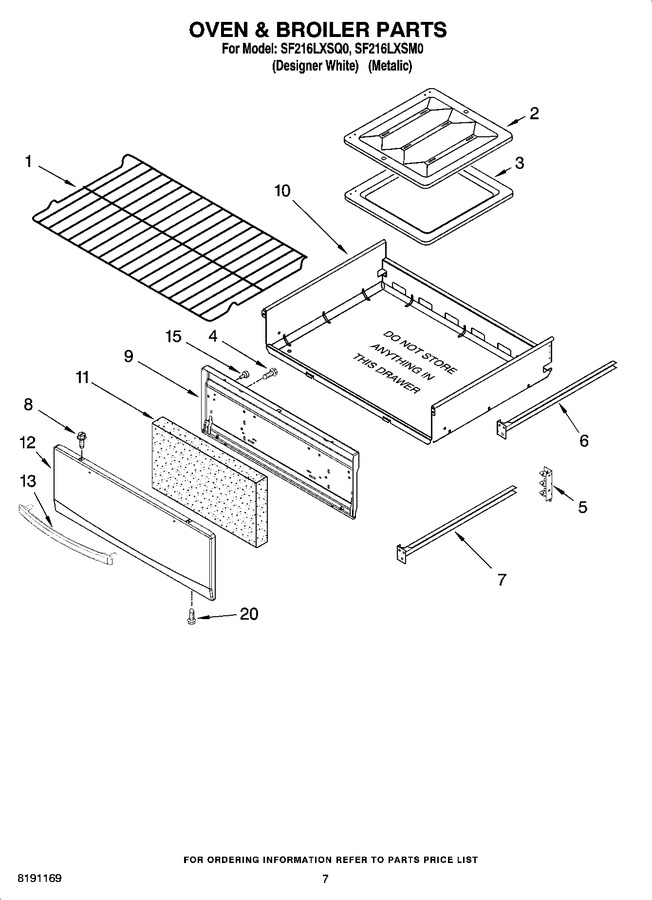

05 - Oven & Broiler Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98014136		Rack, Oven (2)		Appelez-nous	-
2	WP98003480		Grill, Broiler   (Replaces: 98003480)				$ 104.64
3	WP98016005		Pan, Broiler   (Replaces: 98016005)				$ 90.96
4	8533843		Screw				$ 36.27
5	98016666		Support, Tray (right (2))		Appelez-nous	-
5	98016664		Support, Tray (left (2))		Appelez-nous	-
6	WPW10206639		Guide, Fixed (2) (right)   (Replaces: 98005209)				$ 16.80
6	98004994		Guide, Fixed (2) (left)		Appelez-nous	-
7	W10206642		Guide, Mobile (2) (left)   (Replaces: 98004995)				$ 22.33
7	WPW10206641		Guide, Mobile (2) (right)   (Replaces: 98004954)				$ 16.80
8	WP3400832		Screw, Black   (Replaces: 98006726)			Immediately	$ 8.18
8	3196166		Screw, White   (Replaces: 98006727)				$ 7.36
9	W10111093		Liner, Door		Appelez-nous	-
10	98017784		Storage, Drawer		Appelez-nous	-
11	98015234		Insulation, Door		Appelez-nous	-
12	W10110346		Panel, Door (black)		Appelez-nous	-
12	W10110418		Panel, Door (white)				$ 91.63
13	WP98004956		Handle, Brlr Door (black)   (Replaces: 98004956)				$ 152.51
13	98004957		Handle, Brlr Door (white)				$ 62.94
15	98004052		Bumper, Door (2)		Appelez-nous	-
20	WP3400805		Screw   (Replaces: 98004219)				$ 7.55

    View Diagram in Separate Window       Print Part List
