SELECT A DIAGRAM

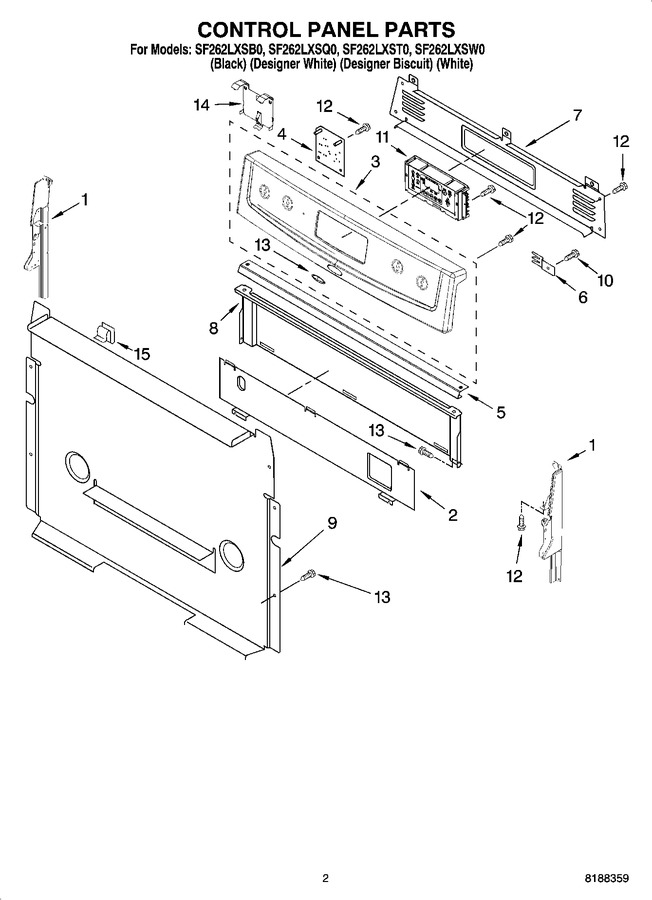

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (left Hand-black)   (Replaces: W10009080)				$ 153.83
1	W11219365		Endcap (left Hand White)   (Replaces: W10009040)				$ 42.45
1	W10009060		Endcap (left Hand Biscuit)		Appelez-nous	-
1	W11219665		Endcap (right Hand-black)   (Replaces: W10009090)				$ 45.17
1	W11219370		Endcap (right Hand White)   (Replaces: W10009050)				$ 60.83
1	W11230612		Endcap (right Hand Biscuit)   (Replaces: W10009070)		Appelez-nous	-
2	8053505		Shield, Lower Heat				$ 165.89
3	W10005830		Panel, Backguard (biscuit)		Appelez-nous	-
3	W10005840		Panel, Backguard (black)				$ 101.75
3	W10005820		Panel, Backguard (white)		Appelez-nous	-
4	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
5	9762095		Brkt-mntg, Console (white Model)		Appelez-nous	-
5	9762078		Brkt-mntg, Console (black/bisc/b On W)				$ 38.13
6	8523412		Bracket, Support				$ 167.90
7	9756301		Cover, Upper				$ 51.01
8	8053910		Shield, Heat		Appelez-nous	-
9	8273132		Cover, Lower		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W10114375		Control, Range (biscuit)		Appelez-nous	-
11	WPW10114373		Control, Range (white)   (Replaces: W10114373)				$ 146.71
11	WPW10114374		Control, Range (black)   (Replaces: W10114374)				$ 138.41
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	9757609		Badge				$ 33.27
14	9762726		Brkt-mntg, Dsi				$ 29.39
15	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
