01 - Cooktop, Literature


02 - Backguard


03 - Manifold


04 - Chassis


05 - Oven And Broiler


06 - Door, Optional

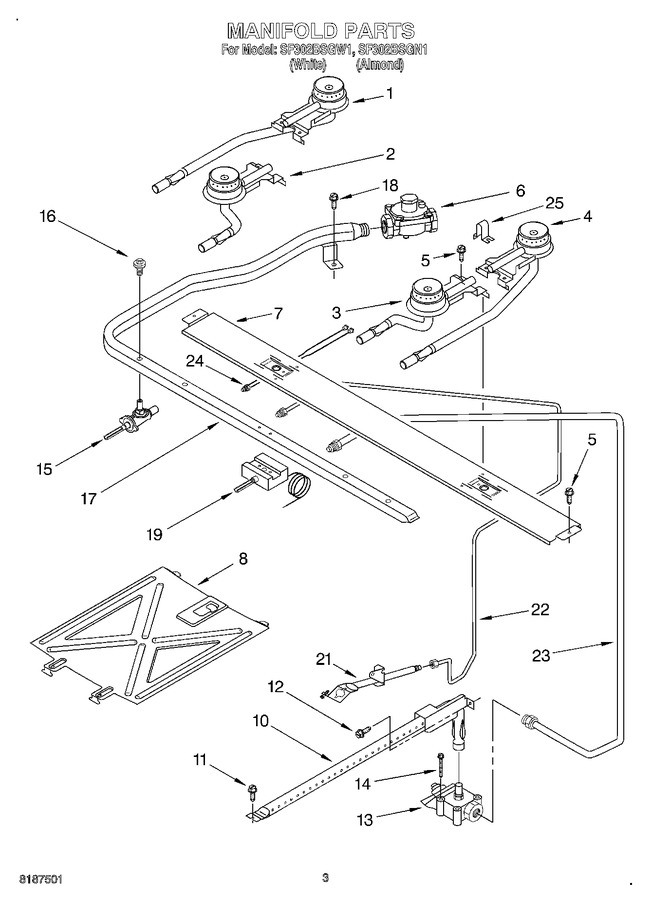

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186213		Burner (left Rear)				$ 90.26
2	3186209		Burner, Left Front		Appelez-nous	-
3	3186214		Burner (right Front)		Appelez-nous	-
4	3186215		Burner (right Rear)		Appelez-nous	-
5	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
6	3195006		Regulator		Appelez-nous	-
7	3186207		Support, Burner		Appelez-nous	-
8	8053970		Spreader, Flame		Appelez-nous	-
10	3196386		Burner, Oven		Appelez-nous	-
11	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
12	3196265		Screw		Appelez-nous	-
13	3186499		Valve, Oven		Appelez-nous	-
14	3196538		Screw		Appelez-nous	-
15	3196850		Valve, Burner (4)		Appelez-nous	-
16	3186217		Screw				$ 5.53
17	3186219		Pipe, Manifold		Appelez-nous	-
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	8273960		Thermostat		Appelez-nous	-
21	3196270		Pilot, Oven		Appelez-nous	-
22	3195003		Tubing (t-stat To Oven Pilot)		Appelez-nous	-
23	3195004		Tubing (t-stat To Oven Valve)		Appelez-nous	-
24	3195001		Tubing, Pilot		Appelez-nous	-
25	3196471		Lp Conversion Kit (nat To Lp)		Appelez-nous	-
25	3195002		Cover, Pilot (2)		Appelez-nous	-
25	814391		Spud Kit-set Of 4 (lp To Nat)		Appelez-nous	-
