SELECT A DIAGRAM

Diagram for 01 - Cooktop
01 - Cooktop

Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Manifold
03 - Manifold

Diagram for 04 - Chassis
04 - Chassis

Diagram for 05 - Oven And Broiler
05 - Oven And Broiler

Diagram for 06 - Door, Lit/optional
06 - Door, Lit/optional


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8053391 Grate, Burner (4) Special Order $ 242.28

2 3186030 Cooktop (white) Appelez-nous -
3 WP8523854 Panel, Manifold   (Replaces: 3186006) Special Order $ 290.58

4 WP3186135 Knob, Burner (4)   (Replaces: 3186135) Special Order $ 25.48

7 WP3195812 Rod, Support (2)   (Replaces: 3195812) In-Stock Immediately $ 8.73

8 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 14.72

9 WP3195060 Hinge, Cooktop (2)   (Replaces: 3195060) In-Stock Immediately $ 13.18

10 WP3196557 Screw   (Replaces: 3196557) In-Stock Immediately $ 7.95


    View Diagram in Separate Window     Print Icon   Print Part List

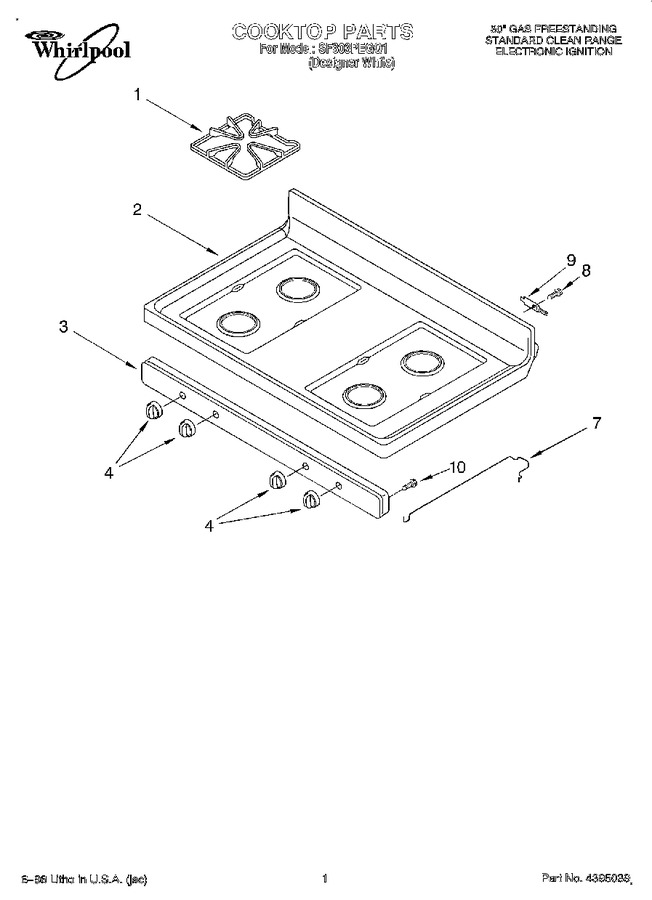

Diagram for SF303PEGQ1
