SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Manifold

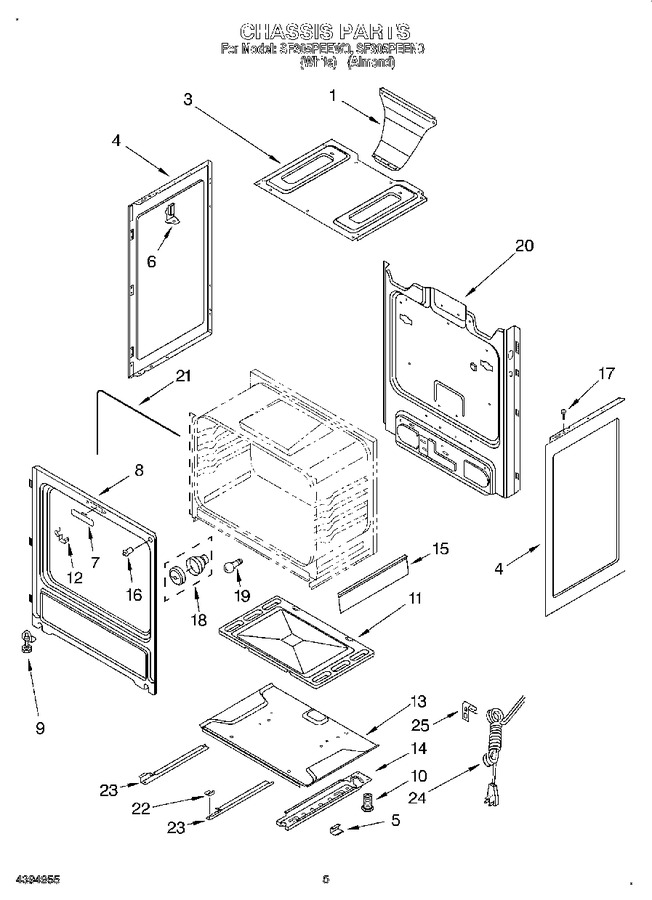

04 - Chassis


05 - Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: 3195727)				$ 157.80
1	WP3196557		Screw (3)   (Replaces: 3196537)			Immediately	$ 7.95
3	W11233072		Screw (3)   (Replaces: 3196178)			Immediately	$ 14.72
3	W11379351		Burner Box   (Replaces: 3195033)				$ 64.19
4	W11233072		Panel, Side (2) (screw (4))   (Replaces: 3196178)			Immediately	$ 14.72
4	WP98008545		Panel, Side (2) (screw (4))   (Replaces: 3196179)				$ 18.60
4	3186074		Panel, Side (2) (almond)		Appelez-nous	-
4	3186073		Panel, Side (2) (white)		Appelez-nous	-
5	3196576		Clip, Panel (6)		Appelez-nous	-
6	3186405		Brkt, Manifold Mtg (left Hand)		Appelez-nous	-
6	3186406		Brkt, Manifold Mtg (right Hand)		Appelez-nous	-
6	W11233072		Brkt, Manifold Mtg (screw (4))   (Replaces: 3196178)			Immediately	$ 14.72
7	3196072		Plug, Frame		Appelez-nous	-
8	W11233072		Screw (2)   (Replaces: 3196176)			Immediately	$ 14.72
8	3186183		Frame, Front		Appelez-nous	-
9	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 87.12
10	WPW10058460		Foot, Rear (2)   (Replaces: 312701)			Immediately	$ 8.24
11	3196152		Screw (2)				$ 8.99
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 231.05
12	98005642		Clip, Bulb (2)   (Replaces: 313382)			Immediately	$ 87.08
13	3186056		Baffle, Base		Appelez-nous	-
13	W11233072		Screw (3)   (Replaces: 3196178)			Immediately	$ 14.72
14	W11818353		Rail, Base (2)   (Replaces: 3186055)				$ 62.66
14	W10491985		Screw (6)   (Replaces: 3196160)			Immediately	$ 7.55
15	3196070		Shield, Lower		Appelez-nous	-
15	W11233072		Screw (4)   (Replaces: 3196178)			Immediately	$ 14.72
16	3196261		Switch, Door		Appelez-nous	-
17	238614		Bumper (2)   (Replaces: 3195809)				$ 84.79
18	W11594027		Socket Assembly   (Replaces: 3150505)			Immediately	$ 87.01
19	8009		Bulb, Light   (Replaces: 311255)			Immediately	$ 18.67
20	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 14.72
20	3186117		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven   (Replaces: 3186152)			Immediately	$ 50.20
22	3195994		Guide, Front (2)		Appelez-nous	-
23	3195732		Plate, Guide (left Hand)		Appelez-nous	-
23	3195731		Plate, Guide (right Hand)		Appelez-nous	-
24	W11582239		Cord, Power   (Replaces: 3196260)				$ 17.59
25	WPW10208653		Insulation, Wrap   (Replaces: 3195038)			Immediately	$ 58.19
25	W11688737		Insulation, Back   (Replaces: 3195990)				$ 122.73
25	3195927		Tie, Insulation		Appelez-nous	-
25	W11244557		Screw (2)   (Replaces: 3196173)				$ 14.29
25	549193		Clamp, Cord   (Replaces: 3196256)				$ 14.06

    View Diagram in Separate Window       Print Part List
