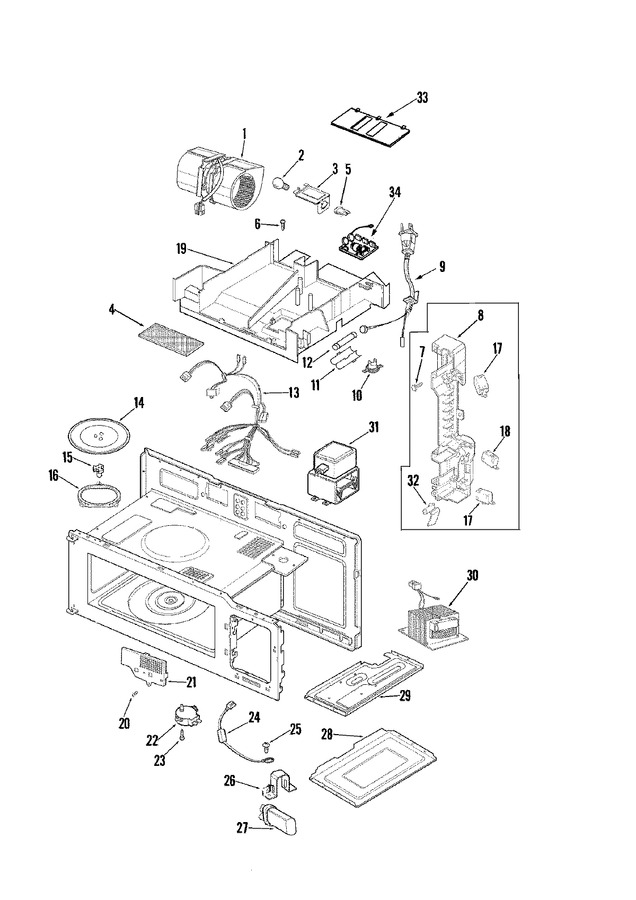

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001358		Motor, Ventilation	10-50	Appelez-nous	-
2	8206232A		Lamp   (Replaces: 53001372)	10-50		Immediately	$ 6.94
3	53001381		Cover, Lamp	10-50	Appelez-nous	-
4	W10864204		Filter,(mech) Aharcaa   (Replaces: 53001379)	10-50			$ 30.28
5	53001380		Socket, Lamp	10-50	Appelez-nous	-
6	R0654183		Screw, Truss Hd	10-50	Appelez-nous	-
7	R0654178		Screw, Special D	10-50	Appelez-nous	-
8	53001363		Board, Latch	10-50	Appelez-nous	-
9	53001881		Cord, Power	51	Appelez-nous	-
9	53001370		Cord, Power	10-50	Appelez-nous	-
10	53001373		Thermostat	10-50	Appelez-nous	-
10	53001374		Bracket, Thermostat	10-50	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	51	Appelez-nous	-
11	53001367		Cap, Fuse	10-50	Appelez-nous	-
12	WP8183507		Fuse   (Replaces: R0131110)	10-50			$ 19.25
12	W10124350		Not Required Part Or See Note	51	Appelez-nous	-
13	53001882		Harness, Wire	51	Appelez-nous	-
13	53001371		Harness	10-50	Appelez-nous	-
14	WP8172138		Tray, Glass   (Replaces: 53001352)	10-50			$ 91.59
15	53001509		Shaft, Turntable	10-50	Appelez-nous	-
16	53001353		Rotating Ring Assembly	10-50	Appelez-nous	-
17	4392027		Switch, Micro   (Replaces: 53001123)	10-50			$ 145.33
18	4392027		Switch, Micro   (Replaces: 53001019)	10-50			$ 145.33
19	53001368		Duct	10-50	Appelez-nous	-
20	R0131246		Screw, Tapping Truss Head	10-50	Appelez-nous	-
21	53001382		Guide, Air	10-50	Appelez-nous	-
21	53001362		Protector (mech)	10-50	Appelez-nous	-
22	53001354		Motor, Turntable	10-50	Appelez-nous	-
23	R0654180		Screw, Pan Hd	10-50	Appelez-nous	-
24	WP8205489		Diode Assembly   (Replaces: 53001375)	10-50			$ 61.10
25	4344826		Screw,tap Tite(s)-binding Head   (Replaces: R0131029)	10-50			$ 15.03
26	53001366		Bracket, Capacitor	10-50	Appelez-nous	-
27	WP59001168		Capacitor   (Replaces: 53001365)	10-50		Immediately	$ 218.77
28	53001376		Plate, Bottom (lwr)	10-50	Appelez-nous	-
29	R0131246		Screw, Tapping Truss Head	10-50	Appelez-nous	-
29	53001377		Plate, Bottom (upr)	10-50	Appelez-nous	-
30	53001369		Transformer	10-50	Appelez-nous	-
31	W10859575		Magnetron   (Replaces: R9900082)	10-50			$ 379.70
32	53001364		Lever	10-50	Appelez-nous	-
33	53001383		Protector	10-50	Appelez-nous	-
34	R9800472		Assy, Fuse Block/noise Filter	51	Appelez-nous	-
