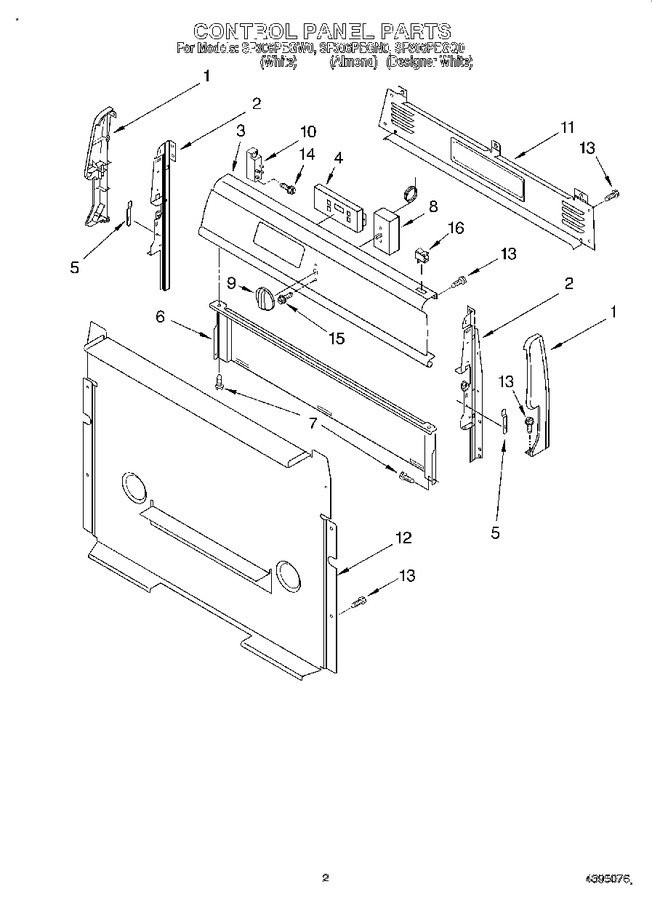

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Oven & Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186188		Endcap, Left Hand (black)		Appelez-nous	-
1	3186189		Endcap, Right Hand (black)		Appelez-nous	-
1	3186190		Endcap (left Hand White)		Appelez-nous	-
1	3186191		Endcap (right Hand White)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	8053214		Panel, Backguard (white)		Appelez-nous	-
3	8053213		Panel, Backguard (black)		Appelez-nous	-
4	3191646		Control, Range (white)				$ 319.84
4	3191645		Control, Range (black)		Appelez-nous	-
5	3196200		Clip, Spring (2)				$ 10.45
6	3186187		Shield, Heat		Appelez-nous	-
7	W10276642		Screw   (Replaces: 4449746)				$ 6.41
8	3195211		Thermostat				$ 62.61
9	3196064		Knob, Thermostat		Appelez-nous	-
10	8053420		Module, Spark		Appelez-nous	-
11	3195963		Cover, Upper		Appelez-nous	-
12	8053509		Cover, Lower		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
15	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
16	3149360		Switch, Rocker (white)				$ 89.01
16	WP4314961		Switch, Rocker (black)   (Replaces: 3148564)				$ 93.95
