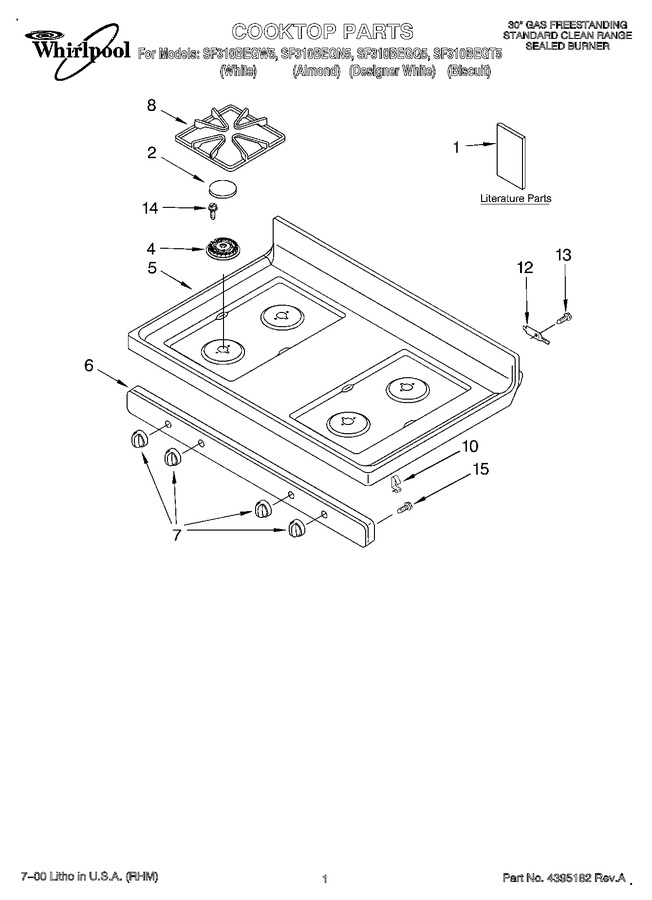

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273166		Literature (instuctions, Installation)		Appelez-nous	-
1	LIT3195945		Literature (installation, Instructions (template))		Appelez-nous	-
1	LIT8273144		Guide, Use & Care		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT8054033		Literature (wiring Diagram)		Appelez-nous	-
2	3191899		Cap, Burner (small (1) (grey))				$ 31.21
2	WP3191901		Cap, Burner (large (3) (black))   (Replaces: 3191901)				$ 128.91
2	WP3191898		Cap, Burner (small (1) (black))   (Replaces: 3191898)				$ 71.00
2	WP3191903		Cap, Burner (large (3) (grey))   (Replaces: 3191903)				$ 191.50
4	WP4455980		Lf-lr-rf   (Replaces: 8273215)				$ 65.21
4	8273216		Rr		Appelez-nous	-
5	8272251		Cooktop (white)		Appelez-nous	-
5	8272252		Cooktop (almond)		Appelez-nous	-
5	8195546		Cooktop (biscuit)   (Replaces: 8272743)		Appelez-nous	-
6	8273028		Panel, Manifold (biscuit)		Appelez-nous	-
6	8523855		Panel, Manifold (black)   (Replaces: 8273027)				$ 176.18
6	WP8523854		Panel, Manifold (white)   (Replaces: 8273025)				$ 290.58
7	8273859		Knob, Control (4) (biscuit)		Appelez-nous	-
7	WP8273115		Knob, Control (4) (black)   (Replaces: 8273115)				$ 25.08
7	8273116		Knob, Control (4) (white)		Appelez-nous	-
8	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 140.02
8	8053391		Grate, Burner (4) (grey)				$ 242.28
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 13.18
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
