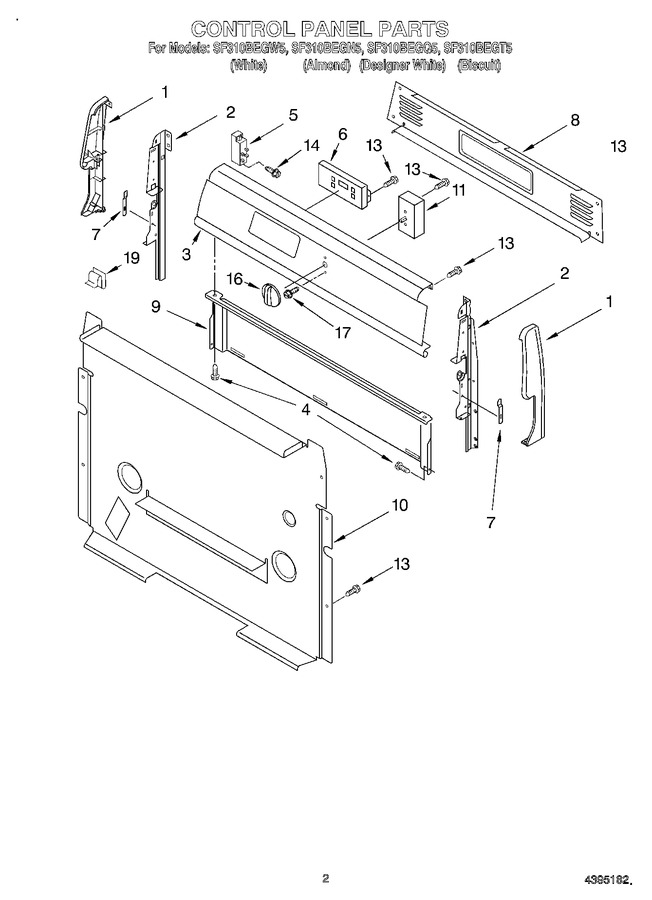

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (left Hand White)		Appelez-nous	-
1	3186188		Endcap, Left Hand (black)		Appelez-nous	-
1	3186189		Endcap, Right Hand (black)		Appelez-nous	-
1	8272508		Endcap (biscuit Right Hand)		Appelez-nous	-
1	3186191		Endcap (right Hand White)		Appelez-nous	-
1	8272507		Endcap (biscuit Left Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	8053684		Panel, Backguard (black)		Appelez-nous	-
3	8053685		Panel, Backguard (white)		Appelez-nous	-
3	8273795		Panel, Backguard (biscuit)		Appelez-nous	-
4	W10276642		Screw   (Replaces: 4449746)				$ 6.41
5	WP8053421		Module, Spark   (Replaces: 8053421)			Immediately	$ 184.47
6	3191646		Control, Range (white)				$ 319.84
6	3191645		Control, Range (black)		Appelez-nous	-
6	8273519		Control, Range (biscuit)		Appelez-nous	-
7	3196200		Clip, Spring (2)				$ 10.45
8	8272474		Cover, Upper		Appelez-nous	-
9	8053910		Shield, Heat		Appelez-nous	-
10	8273132		Cover, Lower		Appelez-nous	-
11	3195211		Thermostat				$ 62.61
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
16	8273796		Knob, Thermostat (biscuit)		Appelez-nous	-
16	3196065		Knob, Thermostat (white)		Appelez-nous	-
16	3196064		Knob, Thermostat (black)		Appelez-nous	-
17	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
19	WP8273564		Clip   (Replaces: 8273564)				$ 12.66

    View Diagram in Separate Window       Print Part List
