View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

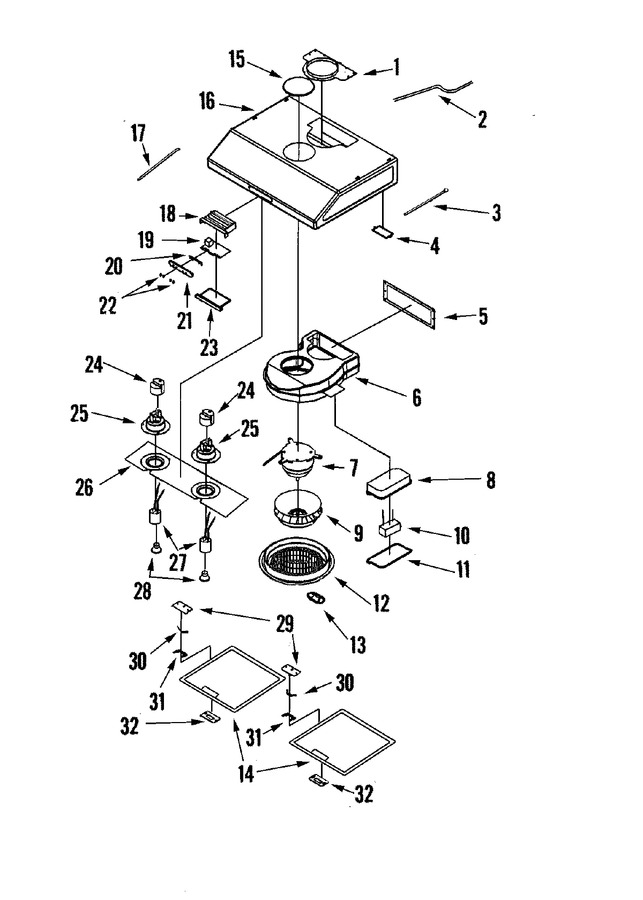

01 - Hood Components (complete)
02 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49001057 | Plate Conversion (6`` Rnd-blk) | 10 |
|
- | ||||
| 2 | 49001058 | Cord, Power | 10 |
|
- | ||||
| 3 | 49001059 | Wire, Ground | 10 |
|
- | ||||
| 4 | 49001013 | Cover Plate, Junction Box | 10 |
|
- | ||||
| 5 | 49001060 | Plate, Rear (rectangular) | 10 |
|
- | ||||
| 6 | 49001061 | Fan Housing | 10 |
|
- | ||||
| 7 | 49001128 | Motor | 10 |
|
- | ||||
| 8 | 49001063 | Electrical Box | 10 |
|
- | ||||
| 9 | 49001064 | Blade, Fan | 10 |
|
$ 94.66 | ||||
| 10 | 49001065 | Condenser | 10 |
|
- | ||||
| 11 | 49001066 | Cover, Electric Box | 10 |
|
- | ||||
| 12 | 49001067 | Grease Pan | 10 |
|
- | ||||
| 13 | 49001068 | Cup, Grease Collection | 10 |
|
- | ||||
| 14 | 49001117 | Panel, Diffuser (stl-30``) | 10 |
|
- | ||||
| 15 | 49001010 | Isolator, Motor (stl) | 10 |
|
- | ||||
| 16 | 49001123 | Shell, (30``-stl) | 10 |
|
- | ||||
| 17 | 49001072 | Connection Wire | 10 |
|
- | ||||
| 18 | 49001125 | Spacer, Switch | 10 |
|
- | ||||
| 19 | 49001126 | Switch, Light | 10 |
|
$ 25.77 | ||||
| 20 | 49001189 | Gasket,slide Speed Switch(blk) | 10 |
|
- | ||||
| 21 | 49001132 | Stem, Slide Speed Switch (blk) | 10 |
|
- | ||||
| 22 | 49001136 | Switch, Bracket (blk) | 10 |
|
- | ||||
| 23 | 49001140 | Stem, Slide Light Switch (blk) | 10 |
|
- | ||||
| 24 | 49001131 | Gasket, Slide Light Switch | 10 |
|
- | ||||
| 25 | 49001145 | Switch, Fan Motor | 10 |
|
$ 25.14 | ||||
| 25 | 49001148 | Switch, Light (wht) | 10 |
|
$ 26.53 | ||||
| 26 | 49001149 | Cover, Light Socket | 10 |
|
- | ||||
| 26 | W10124350 | Not Required Part Or See Note Must Order Panel Assembly | 11 |
|
- | ||||
| 27 | 49001324 | Panel/socket Assy. (stl-30``) | 11 |
|
$ 183.96 | ||||
| 27 | 49001152 | Panel, Light Socket (stl) | 10 |
|
- | ||||
| 28 | 49001154 | Socket, Light | 10 |
|
- | ||||
| 28 | 49001187 | Bulb, Light (mini 40 Watt) | 10 |
|
$ 8.95 | ||||
| 29 | 49001083 | Latch, Plate (upr-blk) | 10 |
|
$ 27.86 | ||||
| 30 | 49001084 | Latch, Spring | 10 |
|
$ 21.87 | ||||
| 31 | 49001085 | Latch, Handle | 10 |
|
$ 41.10 | ||||
| 32 | 49001086 | Latch, Plate (lwr-blk) | 10 |
|
$ 24.57 | ||||
| NI | 49001008 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 49001163 | Kit, Hardware | 10 |
|
- | ||||
| NI | 49001196 | Kit, Recirc.(stl-5230 & 5430) | 10 |
|
$ 175.23 | ||||
| NI | 49001182 | Filter, Carbon (kit Of 2) | 10 |
|
$ 100.45 |
