| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
32024H |
|
Cabinet (harvest Gold) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
32024L |
|
Cabinet (alm) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
32024W |
|
Cabinet (wht) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
32022 |
|
Top Brace |
|
Appelez-nous
|
- |
|
|
|
| 3 |
WP90767 |
 |
Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
|
Immediately |
$ 8.25 |
|
|
| 4 |
56128 |
|
Pad, Bumper (Replaces: Y56128) |
|
|
|
$ 7.72 |
|
|
| 5 |
56079 |
 |
Locater, Panel |
|
|
Immediately |
$ 7.72 |
|
|
| 6 |
WPY014874 |
 |
Screw, Tapping (Replaces: 56086) |
|
|
|
$ 8.18 |
|
|
| 7 |
WP3390631 |
 |
Hex Head Screw (Replaces: 51780) |
|
|
|
$ 8.25 |
|
|
| 8 |
56392 |
|
Screw,8-18 X 3/8 Tappi |
|
Appelez-nous
|
- |
|
|
|
| 9 |
Y00000000 |
|
See Note Ground Wires -- (green) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
Y27103 |
|
Hinge,hold-down Lug |
|
Appelez-nous
|
- |
|
|
|
| 11 |
32021 |
|
Gusset, Transplant |
|
Appelez-nous
|
- |
|
|
|
| 12 |
32249 |
|
Screw,no.8b Tapping-spec |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP22001650 |
 |
Hold-down Clip (Replaces: 28835) |
|
|
Immediately |
$ 8.57 |
|
|
| 14 |
31844W |
|
Front Panel, White |
|
Appelez-nous
|
- |
|
|
|
| 14 |
31844L |
|
Front Panel, Almond |
|
Appelez-nous
|
- |
|
|
|
| 14 |
31844H |
|
Front Panel, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 15 |
28102 |
|
Locator,panel |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP27001200 |
 |
Screw (Replaces: 27196) |
|
|
|
$ 8.06 |
|
|
| 17 |
34318 |
 |
Rubber Pad (Replaces: 21749) |
|
|
Immediately |
$ 5.27 |
|
|
| 18 |
22003428 |
 |
Leveling Leg (Replaces: 20409) |
|
|
Immediately |
$ 16.01 |
|
|
| 19 |
WP210385 |
 |
Locknut (Replaces: Y21899) |
|
|
|
$ 7.30 |
|
|
| 20 |
32509 |
|
Base Assembly |
|
Appelez-nous
|
- |
|
|
|

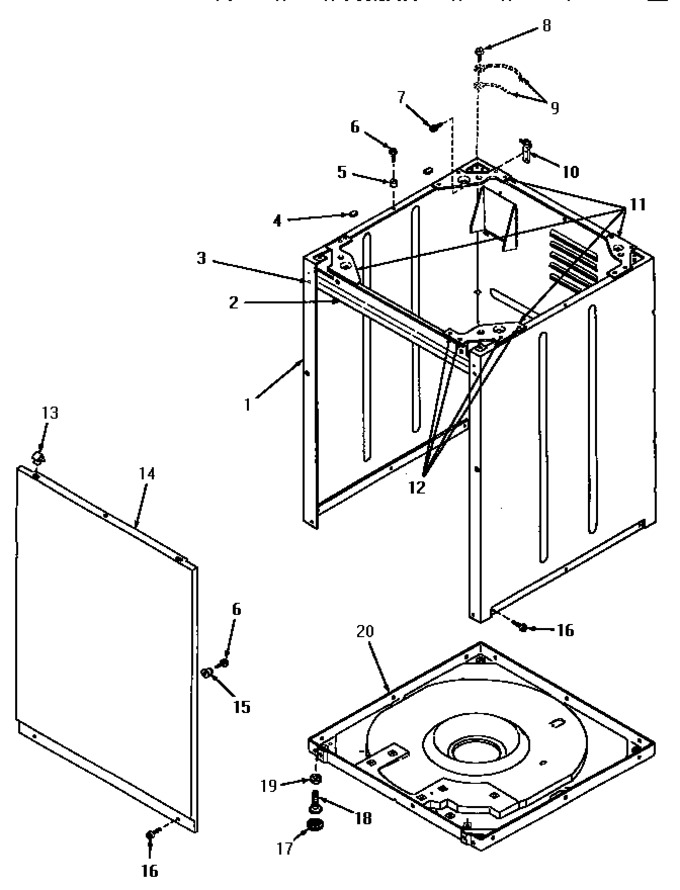

View Diagram in Separate Window
