SELECT A DIAGRAM

01 - Exterior Parts


02 - Interior Parts

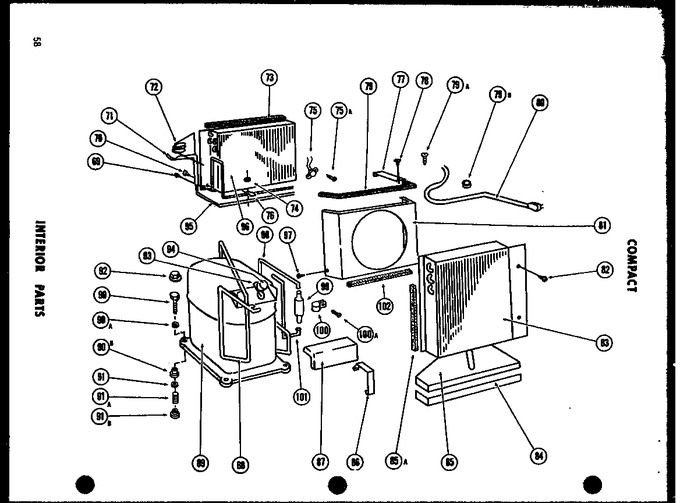

03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
70	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
71	B4143101		Strainer		Appelez-nous	-
72	D5404401		Capillary		Appelez-nous	-
73	A3030302		Gasket		Appelez-nous	-
77	B4792210		Tie Bracket, Condenser Fan Shr		Appelez-nous	-
78	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
79	A3030302		Gasket		Appelez-nous	-
79	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
79	A3045502		Grommet		Appelez-nous	-
80	C5258701		Cord Set		Appelez-nous	-
81	C5232201		Fan Shroud Assembly, Condenser		Appelez-nous	-
82	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
83	D5479601		Evaporator Coil Assembly		Appelez-nous	-
84	B4766001		Cond Barrier		Appelez-nous	-
85	A3030301		Gasket (inch)		Appelez-nous	-
85	D5375302		Filler Block		Appelez-nous	-
86	A4587801		Bale Strap		Appelez-nous	-
87	B4793701		Cover		Appelez-nous	-
88	C5290801		Tube, Suct, Preformed, Evap Co		Appelez-nous	-
89	D5337103		Compressor, Tecumseh, Aj5512f,		Appelez-nous	-
89	D5337104		Comp Tecumseh Aj5512f, 220/240		Appelez-nous	-
90	A4695101		Grommet		Appelez-nous	-
90	A4695702		Bolt-comp Mtg		Appelez-nous	-
90	M0274008		Washer,fibre		Appelez-nous	-
91	A4694901		Washer		Appelez-nous	-
91	A4695202		Grommet		Appelez-nous	-
91	A4697501		Spring-red		Appelez-nous	-
91	A4697401		Spring-red		Appelez-nous	-
92	M0283610		Nut		Appelez-nous	-
93	A4587901		Spring		Appelez-nous	-
94	D4976628		Overload		Appelez-nous	-
94	D4976664		Overload		Appelez-nous	-
96	D5419902		Condenser Coil Assembly		Appelez-nous	-
97	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
98	C5892501		Tube-discharge		Appelez-nous	-
99	C5885806		Muffler		Appelez-nous	-
100	M0102318		Clamp		Appelez-nous	-
100	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
101	B1115001		Tube-discharge		Appelez-nous	-
102	A3030302		Gasket		Appelez-nous	-
NI	A4051702		Elbow		Appelez-nous	-
NI	B5165109		Dampener Tube, Rubber		Appelez-nous	-
NI	WP4312464		Screw   (Replaces: M0211029)				$ 7.30
NI	B1114701		Gasket-5.875``		Appelez-nous	-
NI	A4692201		Insulator		Appelez-nous	-
NI	A4502401		Elbow, Condenser Coil		Appelez-nous	-
NI	A4083903		Elbow, Evaporator Coil To Capi		Appelez-nous	-
NI	A4593501		Adaptor		Appelez-nous	-
NI	A0375001		Grommet		Appelez-nous	-
NI	M0321204		Wire Tie		Appelez-nous	-
NI	A3030303		Gasket (per Foot)		Appelez-nous	-
NI	M0206116		Screw		Appelez-nous	-
NI	A3030331		Gasket-per Ft		Appelez-nous	-
NI	A4588001		Seal		Appelez-nous	-
NI	A3030307		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
