01 - Body
02 - Control Panel

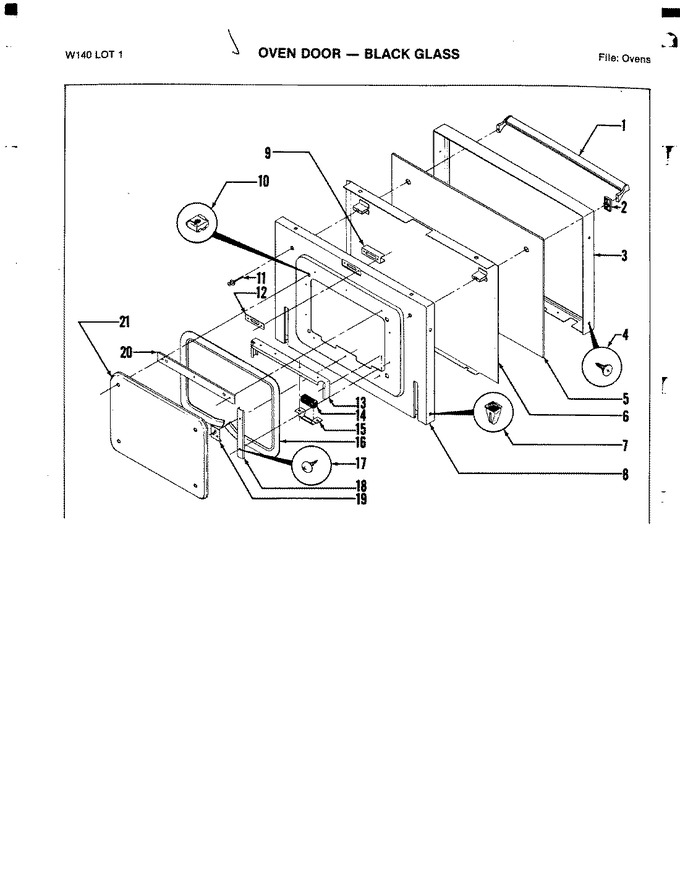

03 - Door (black Glass)
04 - Elements
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 771247 | Frame |
|
- | |||||
| 2 | 771249 | Vent, Trim |
|
- | |||||
| 3 | 700437 | Clock Knob |
|
Immediately | $ 14.47 | ||||
| 4 | 701332 | Thermometer Knob (upper) |
|
- | |||||
| 5 | 00701333 | Select, Knob (Replaces: 701333) |
|
Immediately | $ 271.69 | ||||
| 6 | 701334 | Glass |
|
- | |||||
| 7 | 700436 | Clock |
|
$ 26.67 | |||||
| 8 | 701217 | Fastener Clock Mounting |
|
- | |||||
| 9 | 701335 | Plate, Instrument Mounting |
|
- | |||||
| 10 | 700071 | Shield, Wire |
|
- | |||||
| 11 | 771117 | Clean Light |
|
- | |||||
| 11 | 771116 | Lock Light |
|
- | |||||
| 12 | 771196 | Screw |
|
- | |||||
| 12 | 701331 | Thermostat, Upper |
|
- | |||||
| 13 | DE81-04650A | Selector, Switch (upper) (Replaces: 701336) |
|
$ 361.26 | |||||
| 13 | 771196 | Screw |
|
- | |||||
| 14 | 771060 | Cover-screw Tip |
|
- | |||||
| 15 | 771184 | Screw |
|
- | |||||
| 15 | DE81-08227A | Terminal-p4 (Replaces: 701337) |
|
$ 223.59 | |||||
| 15 | 701338 | Screw |
|
- |
