SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Fans


05 - Fans (convection)


06 - Internal Controls


07 - Oven

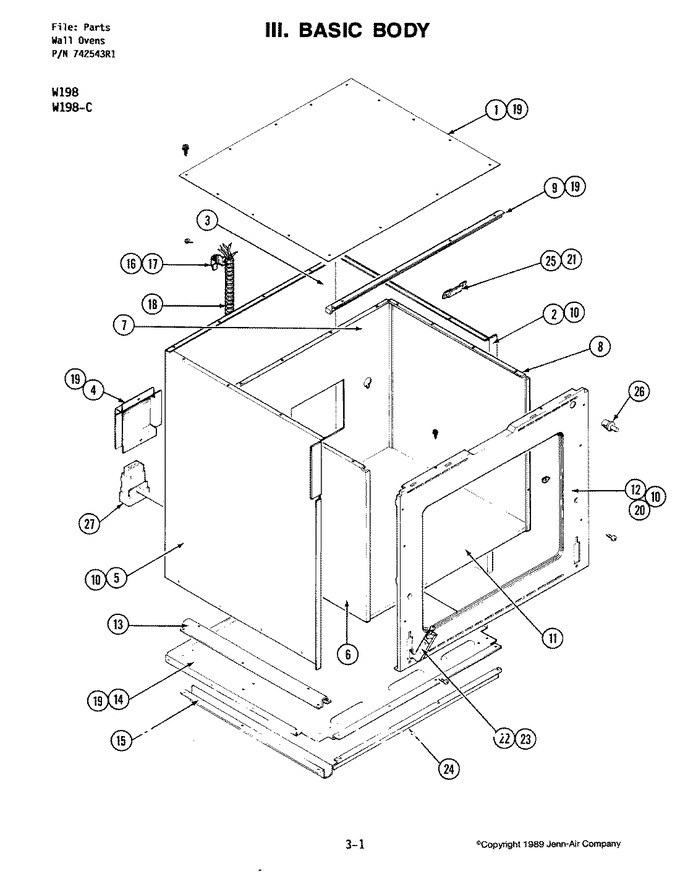

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701681		Top (outer)	1	Appelez-nous	-
2	701672		Panel, Outer (rt)	1	Appelez-nous	-
3	701691		Panel, Rear (outer)	1	Appelez-nous	-
4	702792		Cover, Thermostat	1	Appelez-nous	-
5	701695		Panel, Outer (lt)	1	Appelez-nous	-
6	DE81-09195A		Panel, Side (lt)   (Replaces: 701697)	1			$ 865.60
7	704808		Panel, Rear	1	Appelez-nous	-
8	701676		Panel, Side (rt)	1	Appelez-nous	-
9	703095		Support, Top	1	Appelez-nous	-
10	Y700556		Clip, J	1	Appelez-nous	-
11	DE81-07471A		Panel, Bottom   (Replaces: 701669)	1			$ 356.44
12	703609		Closure, Front	1	Appelez-nous	-
13	701701		Angle, Oven Support	1	Appelez-nous	-
13	DE81-06547A		Support, Bottom   (Replaces: 701667)	1			$ 181.82
14	701668		Panel, Bottom (outer)	1	Appelez-nous	-
15	700596		Rail, Bottom	1	Appelez-nous	-
16	DE81-08030A		Clamp, Conduit   (Replaces: 701692)	1			$ 145.57
17	WP7101P126-60		Screw   (Replaces: Y708310)	1		Immediately	$ 8.36
18	DE81-08029A		Harness, Main   (Replaces: 701693)	1			$ 147.50
19	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 8.76
20	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 14.72
21	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 8.25
22	Y703419		Hinge	1	Appelez-nous	-
23	Y708690		Screw	1	Appelez-nous	-
24	701848		Trim, Oven (lower)	1	Appelez-nous	-
25	701680		Bracket, Vent Tube	1	Appelez-nous	-
26	701666		Switch, Door	1	Appelez-nous	-
27	704165		Box, Breaker	1	Appelez-nous	-
27	702812		Thermostat----na	1	Appelez-nous	-
27	702008		Breaker (30 Amp)	1	Appelez-nous	-
27	702007		Breaker (15 Amp)	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
