01 - Cooktop


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Lit/optional

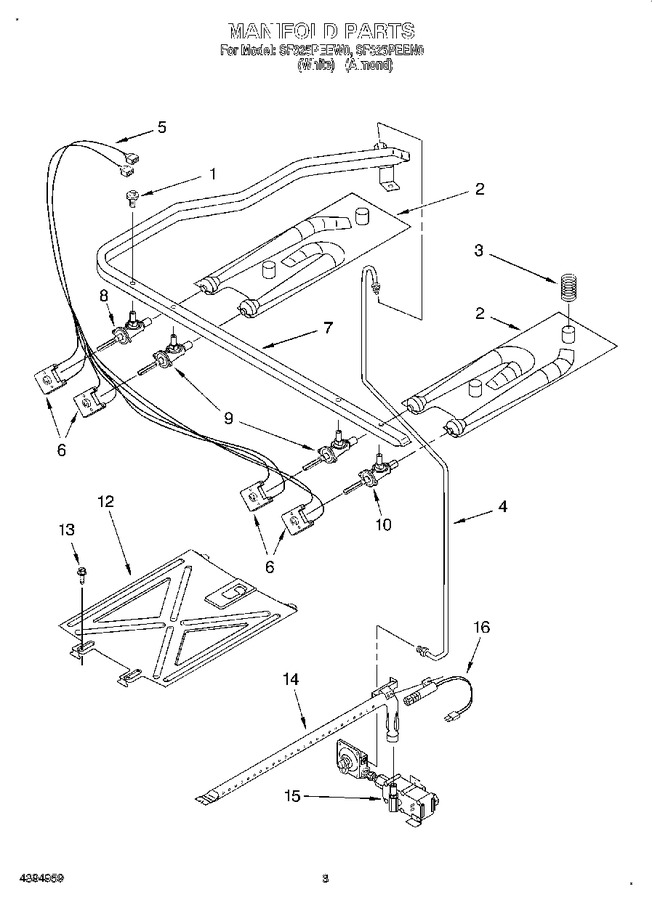

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186217		Screw, Valve (4)				$ 5.53
2	3195021		Plate, Venturi (left Hand)		Appelez-nous	-
2	3195020		Plate, Venturi (right Hand)		Appelez-nous	-
3	3196459		Spring, Seal (4)		Appelez-nous	-
4	3186497		Tubing (manifold To Regulator)		Appelez-nous	-
5	3196469		Harness, Igniter (incl. Switches)		Appelez-nous	-
6	3196470		Switch, Spark (4)		Appelez-nous	-
6	W11233072		Screw (3)   (Replaces: 3196178)			Immediately	$ 14.72
7	3186221		Pipe, Manifold		Appelez-nous	-
7	W11233072		Screw (3)   (Replaces: 3196178)			Immediately	$ 14.72
8	3186402		Valve, 7,500 Btu (lr)		Appelez-nous	-
9	3186401		Valve, 9,500 Btu (lf, Rf)		Appelez-nous	-
10	3186403		Valve, 6,500 Btu (rr)		Appelez-nous	-
12	3196084		Spreader, Flame		Appelez-nous	-
13	WP3196175		Screw (2)   (Replaces: 3196175)			Immediately	$ 7.55
14	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
14	3196265		Screw		Appelez-nous	-
14	3196446		Burner, Bake/broil		Appelez-nous	-
15	WP3196183		Screw (2)   (Replaces: 3196183)			Immediately	$ 8.18
15	3196544		Valve, Gas Combo				$ 192.74
15	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
16	W11684507		Screw (2)   (Replaces: 3196385)				$ 14.27
16	3196447		Igniter, Bake/broil		Appelez-nous	-
