SELECT A DIAGRAM

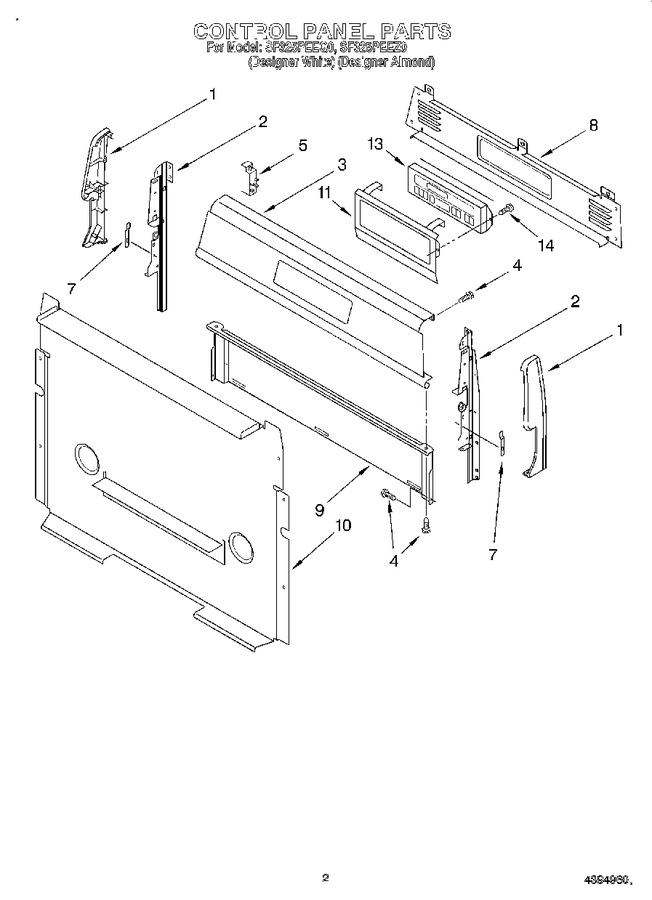

01 - Cooktop


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap Left Hand (white Model)		Appelez-nous	-
1	3186192		Endcap Left Hand (almond Model)		Appelez-nous	-
1	3186191		(end Cap Right Hand) (white Model)		Appelez-nous	-
1	3186193		(end Cap Right Hand) (almond Model)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	3195781		Panel, Backguard (white Model)		Appelez-nous	-
3	3195782		Panel, Backguard (almond Model)		Appelez-nous	-
4	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
5	WPW10110491		Module, Spark   (Replaces: 3186493)			Immediately	$ 322.41
5	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
7	3196200		Clip, Spring (2)				$ 10.45
8	W11233072		Screw (5)   (Replaces: 3196178)			Immediately	$ 14.72
8	3195963		Cover, Upper		Appelez-nous	-
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 6.41
9	3186187		Shield, Heat		Appelez-nous	-
10	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 14.72
10	3195964		Cover, Lower		Appelez-nous	-
11	3195823		Bracket, Control		Appelez-nous	-
13	6610066		Control, Oven (white Model)		Appelez-nous	-
13	6610067		Control, Oven (almond Model)		Appelez-nous	-
14	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72

    View Diagram in Separate Window       Print Part List
