01 - Cooktop


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

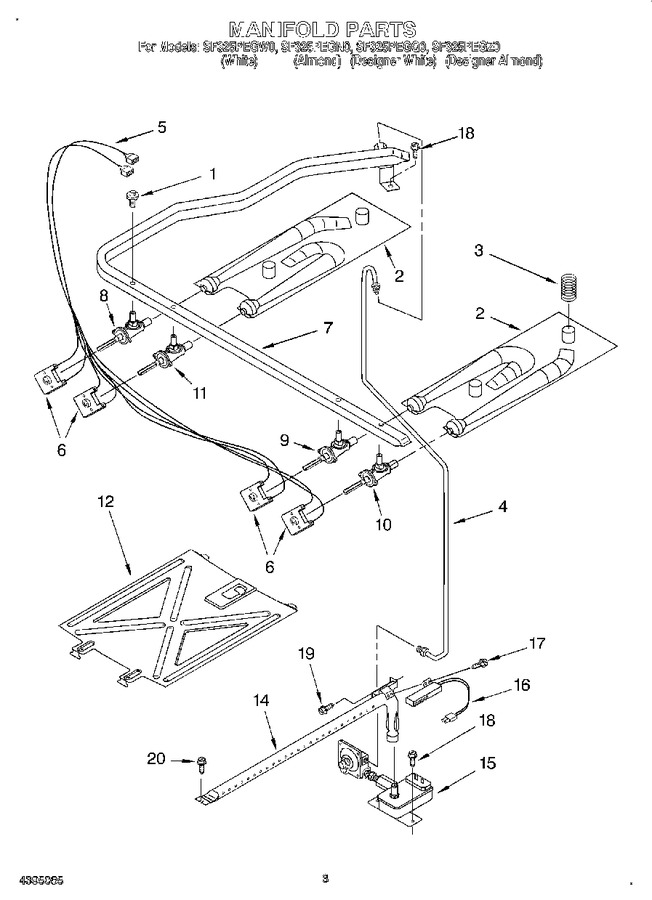

1	3186217		Screw, Valve (4)				$ 5.53
2	3195020		Plate, Venturi (right Hand)		Appelez-nous	-
2	3195021		Plate, Venturi (left Hand)		Appelez-nous	-
3	3196459		Spring, Seal (4)		Appelez-nous	-
4	3186497		Tubing (manifold To Regulator)		Appelez-nous	-
5	3196469		Harness, Igniter (incl. Switches)		Appelez-nous	-
6	3196470		Switch, Spark (4)		Appelez-nous	-
7	3186221		Pipe, Manifold		Appelez-nous	-
8	3196848		Valve, 7,500 Btu (lr)		Appelez-nous	-
9	3196847		Valve, 9,500 Btu (rf)		Appelez-nous	-
10	3196849		Valve, 6,500 Btu (rr)		Appelez-nous	-
11	8053358		Valve, 12500 Btu (lf)		Appelez-nous	-
12	8053256		Spreader, Flame		Appelez-nous	-
14	3186476		Burner, Bake/broil		Appelez-nous	-
15	3195008		Valve, Gas Combo				$ 207.46
16	WP3186491		Igniter, Bake/broil   (Replaces: 3186491)				$ 217.51
17	W11684507		Screw   (Replaces: 3196385)				$ 14.27
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
20	8053368		Spuds, Lp Gas (kit Of 4)		Appelez-nous	-
20	3196265		Screw		Appelez-nous	-
20	814433		Spuds, Natural Gas (kit Of 4)		Appelez-nous	-
