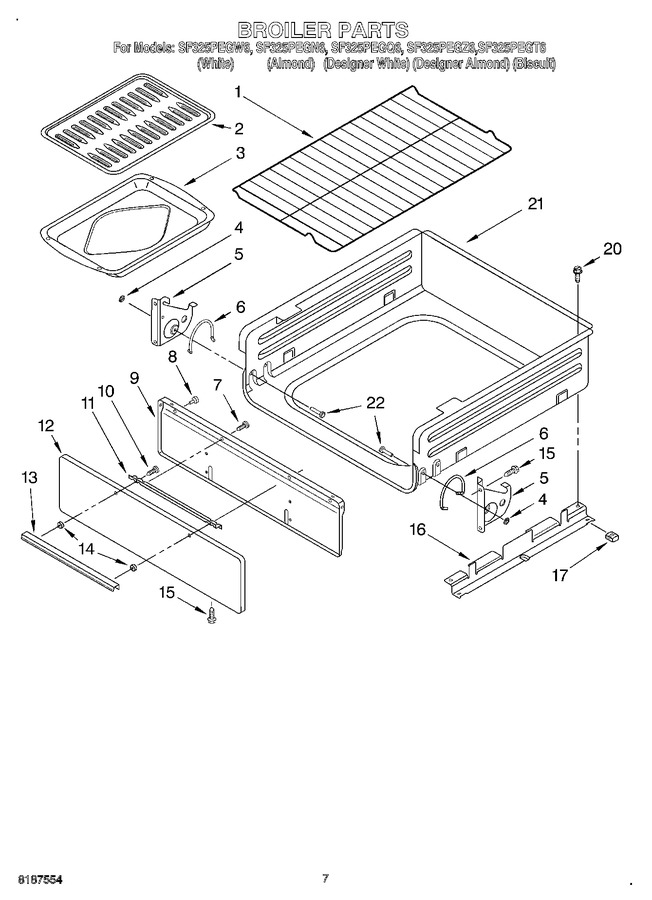

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: 3195710)			Immediately	$ 46.84
2	WP3195996		Grill, Broiler   (Replaces: 3195996)				$ 98.65
3	WP3196076		Pan, Broiler   (Replaces: 3196076)				$ 330.36
4	WP3195558		Pushnut (2)   (Replaces: 3195558)				$ 8.96
5	3195268		Bracket, Hinge (right Hand)		Appelez-nous	-
5	3195269		Bracket, Hinge (left Hand)		Appelez-nous	-
6	3195205		Spring, Hinge (right Hand)		Appelez-nous	-
6	3195267		Spring, Hinge (left Hand)		Appelez-nous	-
7	WP98008545		Screw   (Replaces: 3196179)				$ 18.60
8	3148182		Bumper, Door (2)		Appelez-nous	-
9	3195739		Liner, Brlr Door		Appelez-nous	-
10	3196426		Screw, Handle (2)		Appelez-nous	-
11	3195551		Bracket, Standoff		Appelez-nous	-
12	3186087		Panel, Door (white)		Appelez-nous	-
12	3195096		Panel, Door (almond)		Appelez-nous	-
12	8273504		Panel, Door (biscuit)		Appelez-nous	-
13	3186090		Handle, Brlr Door (black)		Appelez-nous	-
13	8273505		Handle, Brlr Door (biscuit)		Appelez-nous	-
13	3195190		Handle, Brlr Door (almond Model)		Appelez-nous	-
13	3195189		Handle, Brlr Door (white)		Appelez-nous	-
14	3196645		Spacer, Handle (2)		Appelez-nous	-
15	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
16	3195733		Guide, Upper (2)		Appelez-nous	-
17	3195730		Guide, Broiler (2)				$ 5.70
20	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
21	3186079		Carriage, Broiler		Appelez-nous	-
22	3186097		Pin, Pivot (2)		Appelez-nous	-
