SELECT A DIAGRAM

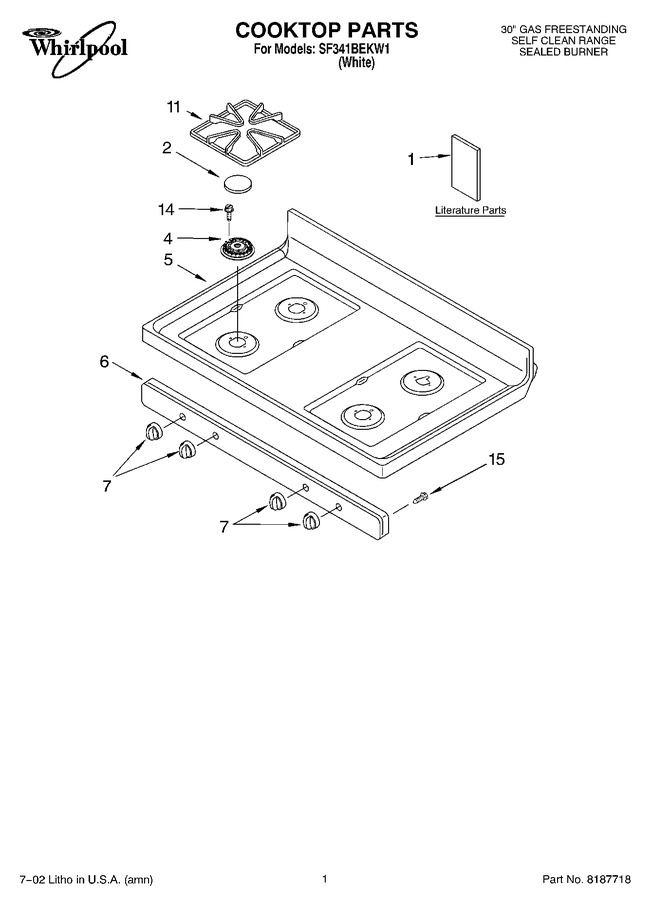

01 - Cooktop, Literature
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Drawer And Broiler
06 - Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8273173 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (installation Instr (template)) |
|
- | |||||
| 1 | LIT8522775 | Guide, Use & Care |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8523780 | Literature Parts (instructions, Installation) |
|
- | |||||
| 2 | WP3191901 | Cap, Burner Lf - Lr - Rf (black Right Rear) (Replaces: 3191901) |
|
$ 128.91 | |||||
| 2 | WP3191898 | Cap, Burner (lf, Lr, Rf) (black) (Replaces: 3191898) |
|
$ 71.00 | |||||
| 4 | 4455979 | Burner (right Rear) |
|
$ 28.52 | |||||
| 4 | WP4455980 | Burner (lf - Lr - Rf) (Replaces: 4455980) |
|
$ 65.21 | |||||
| 5 | 8272251 | Cooktop |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (black) (Replaces: 8273027) |
|
$ 176.18 | |||||
| 7 | WP8273103 | Knob, Control (2) (black) (Replaces: 8273103) |
|
Immediately | $ 16.85 | ||||
| 11 | WPW10268483 | Grate, Burner (4) (Replaces: 8053458) |
|
$ 140.02 | |||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
