SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer And Broiler


06 - Door

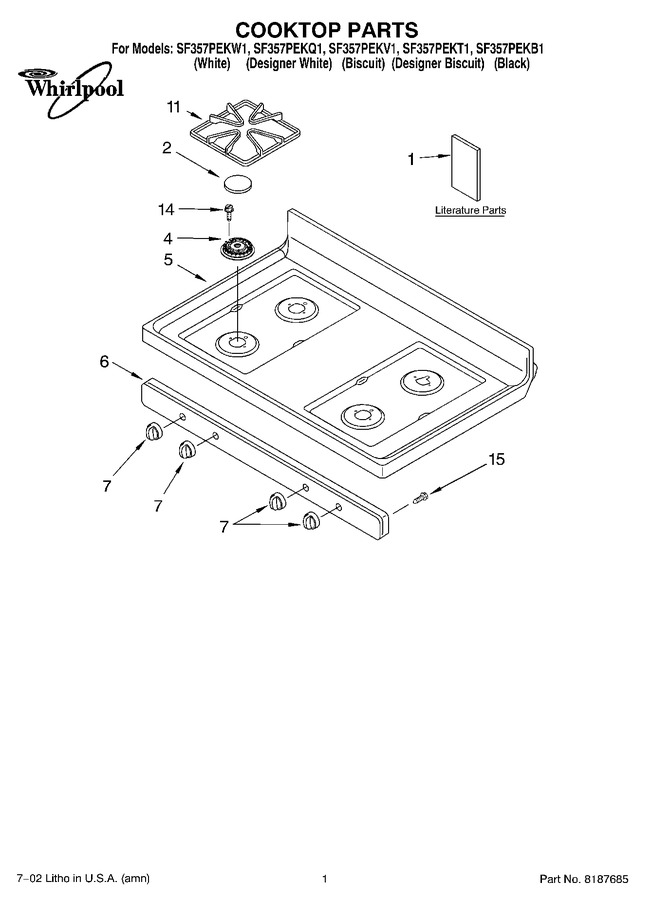

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8523780		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8522776		Guide, Use & Care		Appelez-nous	-
1	LIT8273173		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP8273343		Cap, Burner Rf, Lf, Lr (espresso)   (Replaces: 8273343)				$ 90.90
2	3191899		Cap, Burner Rf, Lf, Lr (grey)				$ 31.21
2	WP3191898		Cap, Burner Rf, Lf, Lr (black)   (Replaces: 3191898)				$ 71.00
2	WP8273344		Cap, Burner Rf, Lf, Lr (espresso Rr)   (Replaces: 8273344)				$ 102.05
2	WP3191903		Cap, Burner (lf, Lr, Rf) (grey)   (Replaces: 3191903)				$ 191.50
2	WP3191901		Cap, Burner Rf, Lf, Lr (black)   (Replaces: 3191901)				$ 128.91
4	WP4455980		Burner (rr, Lf, Lr)   (Replaces: 4455980)				$ 65.21
4	4455979		Burner (rr)				$ 28.52
5	8272251		Cooktop (white)		Appelez-nous	-
5	8272253		Cooktop (black)		Appelez-nous	-
5	8195546		Cooktop (biscuit)   (Replaces: 8272743)		Appelez-nous	-
6	8523855		Panel, Manifold (black)   (Replaces: 8273027)				$ 176.18
6	WP8523854		Panel, Manifold (white)   (Replaces: 8273025)				$ 290.58
6	8273028		Panel, Manifold (biscuit)		Appelez-nous	-
7	WP8273106		Knob, Control (biscuit)   (Replaces: 8273106)				$ 19.55
7	WP8273104		Knob, Control (white)   (Replaces: 8273104)			Immediately	$ 17.99
7	WP8273103		Knob, Control (black)   (Replaces: 8273103)			Immediately	$ 16.85
11	8053391		Grate, Burner (4) (grey)				$ 242.28
11	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 140.02
11	8274187		Grate, Burner (4) (espresso)		Appelez-nous	-
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
