SELECT A DIAGRAM

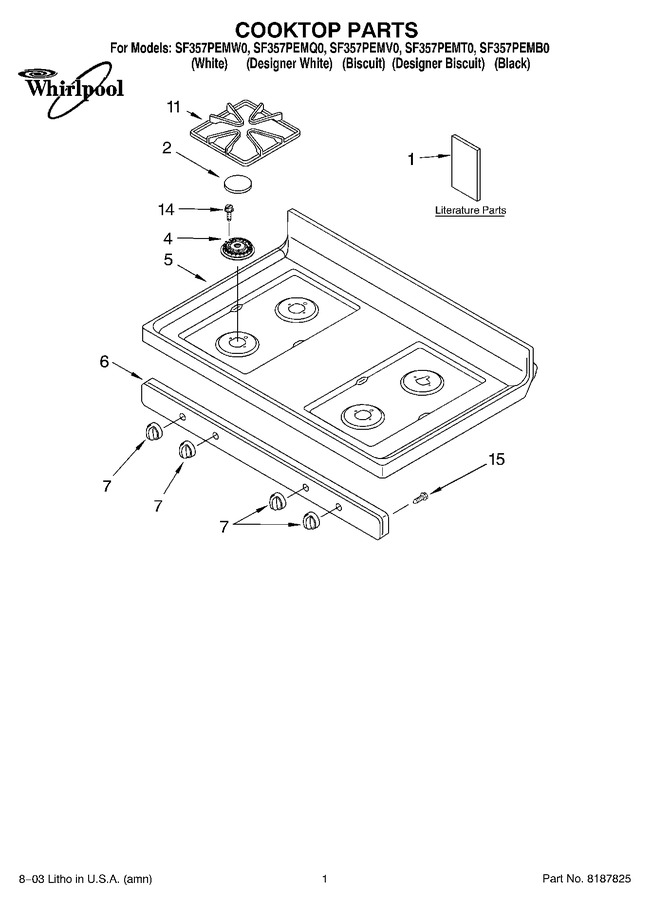

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9756904		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT9756385		Guide, Use & Care		Appelez-nous	-
1	LIT8273173		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP8273343		(cap, Burner Rr) (espresso)   (Replaces: 8273343)				$ 86.57
2	3191899		Cap, Burner (rr) (grey)				$ 31.21
2	WP3191898		Cap, Burner (rr) (black)   (Replaces: 3191898)				$ 67.62
2	WP8273344		Cap, Burner Rf, Lf, Lr (espresso)   (Replaces: 8273344)				$ 97.19
2	WP3191903		Cap, Burner (lf, Lr, Rf) (grey)   (Replaces: 3191903)				$ 177.35
2	WP3191901		Cap, Burner Rf, Lf, Lr (black)   (Replaces: 3191901)				$ 118.70
4	WP4455980		Burner (rr, Lf, Lr)   (Replaces: 4455980)				$ 62.10
4	4455979		Burner (rr)				$ 28.52
5	8272251		Cooktop (white)		Appelez-nous	-
5	8272253		Cooktop (black)		Appelez-nous	-
5	8195546		Cooktop (biscuit)   (Replaces: 8272743)		Appelez-nous	-
6	8523855		Panel, Manifold (black)				$ 167.79
6	WP8523854		Panel, Manifold (white)   (Replaces: 8523854)				$ 276.74
6	8523856		Panel, Manifold (biscuit)		Appelez-nous	-
7	WP8273106		Knob, Control (biscuit)   (Replaces: 8273106)				$ 18.62
7	WP8273104		Knob, Control (white)   (Replaces: 8273104)			Immediately	$ 17.13
7	WP8273103		Knob, Control (black)   (Replaces: 8273103)			Immediately	$ 16.05
11	8053391		Grate, Burner (4) (grey)				$ 242.28
11	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 133.35
11	8274187		Grate, Burner (4) (espresso)		Appelez-nous	-
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.13
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95

    View Diagram in Separate Window       Print Part List
