01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts, Optional Parts

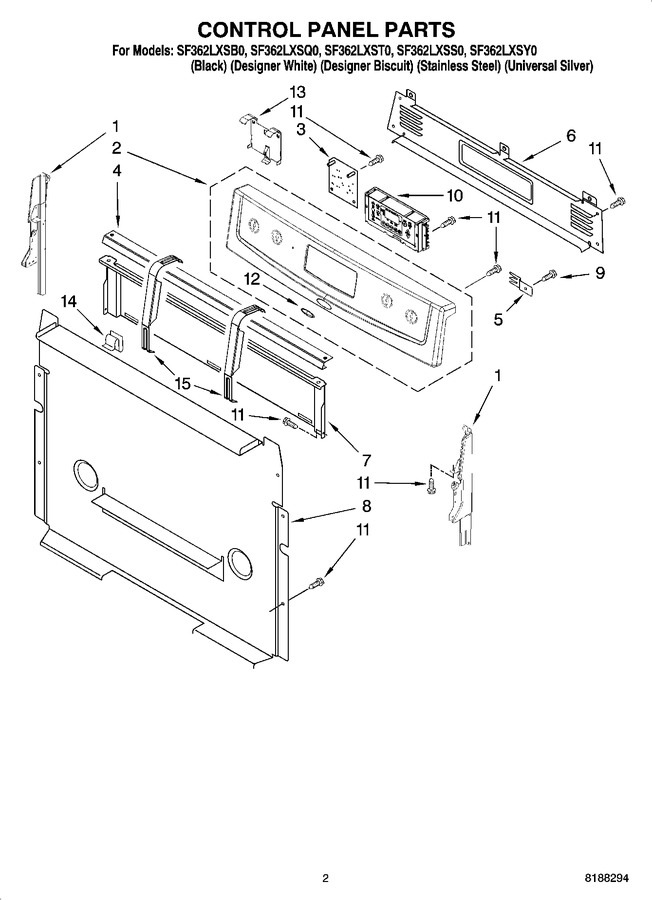

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (left Hand-black)   (Replaces: W10009080)				$ 146.50
1	W11219365		Endcap (left Hand White)   (Replaces: W10009040)				$ 40.43
1	W10009060		Endcap (left Hand Biscuit)		Appelez-nous	-
1	W11219665		Endcap (right Hand-black)   (Replaces: W10009090)				$ 40.44
1	W11219370		Endcap (right Hand White)   (Replaces: W10009050)				$ 57.93
1	W11230612		Endcap (right Hand Biscuit)   (Replaces: W10009070)		Appelez-nous	-
2	9762093		Panel, Backguard (black)		Appelez-nous	-
2	9762091		Panel, Backguard (white)		Appelez-nous	-
2	9762092		Panel, Backguard (biscuit)		Appelez-nous	-
2	9762094		Panel, Backguard (silver For Stnlss)		Appelez-nous	-
3	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
4	9762095		Brkt-mntg, Console		Appelez-nous	-
5	8523412		Bracket, Support				$ 159.90
6	9756301		Cover, Upper				$ 51.01
7	8053910		Shield, Heat		Appelez-nous	-
8	8273132		Cover, Lower		Appelez-nous	-
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
10	W10114383		Control, Range (white)				$ 353.39
10	W10114385		Control, Range (biscuit)		Appelez-nous	-
10	WPW10108190		Control, Range (black)   (Replaces: W10114384)			Immediately	$ 440.69
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
12	9757609		Badge				$ 33.27
13	9762726		Brkt-mntg, Dsi				$ 29.39
14	WP8273564		Clip   (Replaces: 8273564)				$ 12.06
15	9762078		Brkt, Mntg E0c				$ 38.13
