01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer And Broiler


06 - Door, Optional

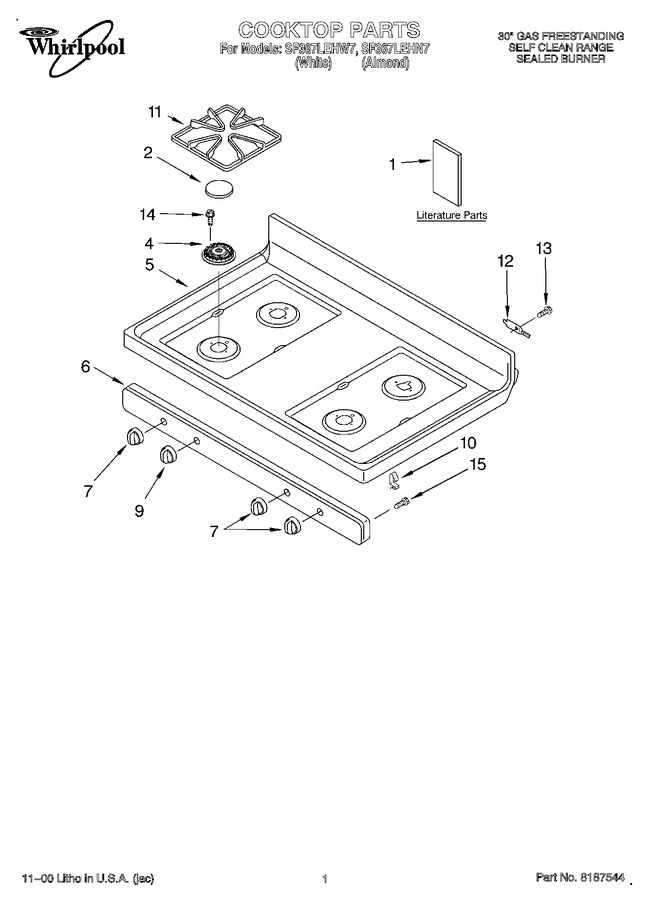

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8273170		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8273150		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8273173		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP3191898		Cap, Burner (rr)   (Replaces: 3191898)				$ 67.62
2	WP3191904		Cap, Burner (lf)   (Replaces: 3191904)				$ 175.39
2	WP3191901		Cap, Burner (lr - Rf)   (Replaces: 3191901)				$ 118.70
4	8273216		Burner (rr)		Appelez-nous	-
4	WP4455980		Burner (lr, Rf)   (Replaces: 8273215)				$ 62.10
4	WP4455981		Burner (lf)   (Replaces: 8273214)			Immediately	$ 87.52
5	8272252		Cooktop (almond)		Appelez-nous	-
5	8272251		Cooktop (white)		Appelez-nous	-
6	8523855		Panel, Manifold   (Replaces: 8273027)				$ 167.79
7	WP8273103		Knob, Control (3)   (Replaces: 8273103)			Immediately	$ 16.05
9	WP8273103		Knob, Powerburner   (Replaces: 8273111)			Immediately	$ 16.05
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
11	WPW10268483		Grate, Burner (4)   (Replaces: 8053458)				$ 133.35
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 12.55
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.13
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
