01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts

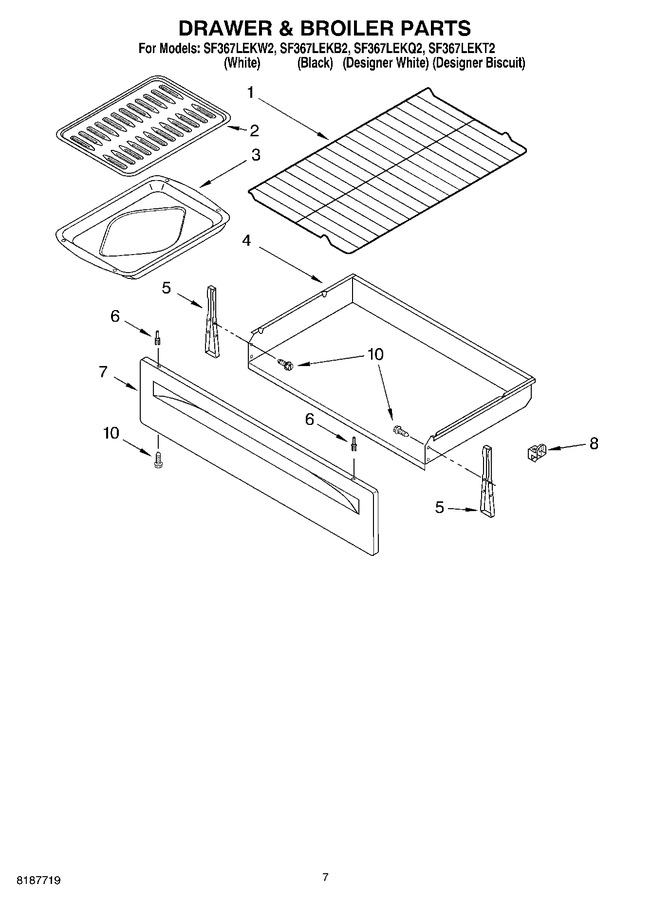

05 - Drawer & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 98.65 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 330.36 | |||||
| 4 | 8272606 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 28.27 | |||||
| 6 | 3196815 | Rivet, Push (2) (almond) |
|
- | |||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 7 | W11230473 | Panel, Drawer Front (biscuit) (Replaces: 8272502) |
|
- | |||||
| 7 | W11230486 | Panel, Drawer Front (white) (Replaces: 8053336) |
|
$ 211.49 | |||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: 8053338) |
|
$ 211.59 | |||||
| 8 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 |
