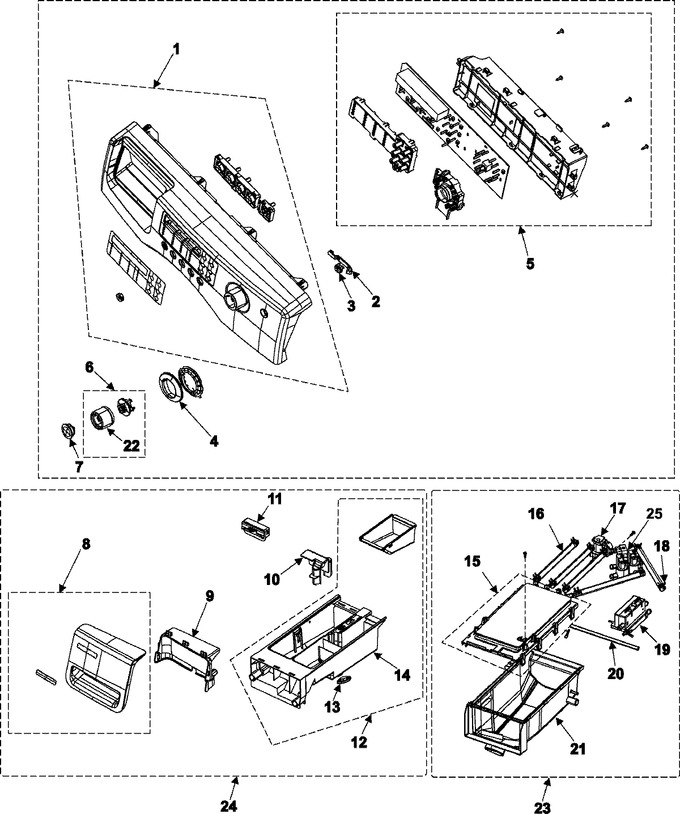

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DC97-10513B		Assy-s.panel Control				$ 137.83
2	DC66-00413A		Lever-power				$ 6.19
3	DC64-01105B		Button-push(p)				$ 14.54
4	Y00000000		See Note Window Encoder Currently Unavailable		Appelez-nous	-
5	W10126756		Assy Pcb Parts(m)		Appelez-nous	-
6	DC97-10511A		Assy-knob Encoder				$ 69.81
7	DC64-01108B		Button-encoder		Appelez-nous	-
8	DC97-10960B		Assy-panel Drawer				$ 101.14
9	DC64-01113B		Handle-drawer				$ 45.53
10	DC67-00121B		Cap-rinse				$ 25.56
11	DC61-01171A		Guide-liquid				$ 30.38
12	DC97-08774A		Assy-s Housing Drawer				$ 79.78
13	DC63-00516A		Cover-detergent		Appelez-nous	-
14	DC61-01170A		Body-drawer				$ 90.55
15	DC97-08800A		Assy-s Housing Drawer			Immediately	$ 61.81
16	DC67-00051B		Hose-drawer				$ 50.88
17	DC62-30314K		Valve-water			Immediately	$ 100.31
18	WP596669		Clamper Hose;sew-dr605,sk5,-,-   (Replaces: DC65-00008A)			Immediately	$ 8.82
19	555555		Assy-guide Water   (Replaces: DC97-10417A)				$ 168.82
20	DC67-00089F		Hose-water				$ 3.66
21	555555		Housing-drawer(l);wf326law,pp   (Replaces: DC61-01167C)				$ 168.82
22	DC64-01084A		Knob-encoder(1);k4-pjt,abs,-,-		Appelez-nous	-
23	555555		Assy-housing Drawer   (Replaces: DC97-07125C)				$ 168.82
24	DC97-10336B		Assy-drawer				$ 146.85
25	DC62-00142G		Valve, Water				$ 134.55
