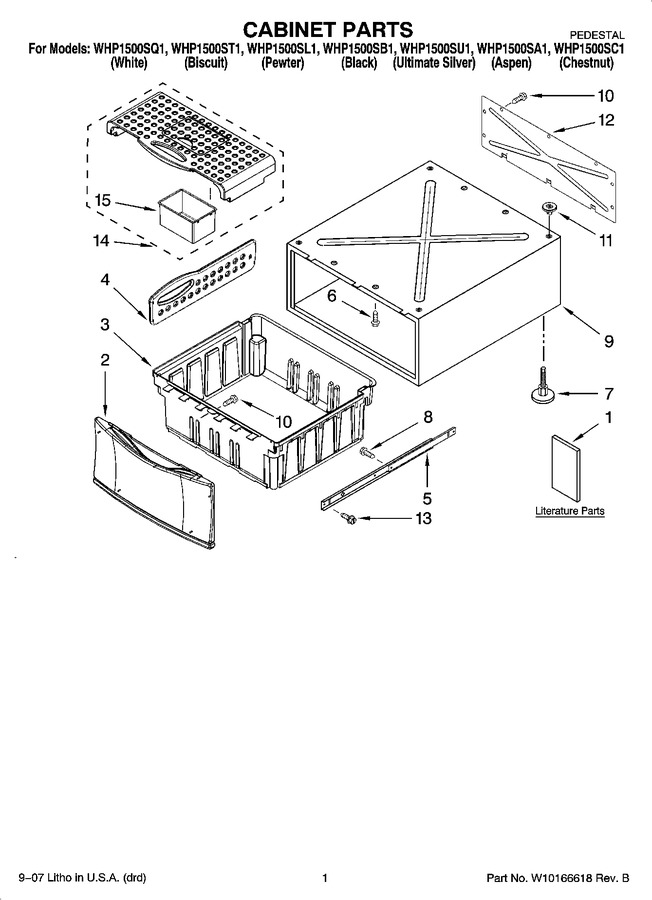

01 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10163294 | Installation Instructions |
|
- | |||||
| 2 | 8577949 | Drawer Front Assembly (ebony) |
|
- | |||||
| 2 | W10138044 | Drawer Front Assembly (chestnut) |
|
- | |||||
| 2 | 8578127 | Drawer Front Assembly (biscuit) |
|
- | |||||
| 2 | 8578129 | Drawer Front Assembly (silver Calypso) |
|
- | |||||
| 2 | 8538032 | Drawer Front Assembly (white) |
|
- | |||||
| 2 | 8578131 | Drawer Front Assembly (ultimate Silver) |
|
- | |||||
| 2 | W10138038 | Drawer Front Assembly (aspen) |
|
- | |||||
| 3 | 8538028 | Drawer Bin |
|
- | |||||
| 4 | 8565576 | Divider, Drawer |
|
- | |||||
| 5 | 8538030 | Slide Assembly |
|
- | |||||
| 6 | WPW10346892 | Screw (Replaces: 3400111) |
|
Immediately | $ 7.19 | ||||
| 7 | WP8563585 | Foot Assembly (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 8 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3400639) |
|
$ 6.95 | |||||
| 10 | WPW10213953 | Screw, 8-18 X 1/2 (Replaces: 8533995) |
|
Immediately | $ 7.19 | ||||
| 11 | WP8537982 | Pad (4) (Replaces: 8537982) |
|
Immediately | $ 8.69 | ||||
| 12 | 8537939 | Panel, Rear |
|
- | |||||
| 13 | WP9740849 | Screw, 8-18 X 7/16 (Replaces: 9740849) |
|
$ 6.95 | |||||
| 14 | W10164713 | Shelf Assembly |
|
$ 55.26 | |||||
| 15 | 8577942 | Box, Shelf |
|
$ 69.27 | |||||
| NI | 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | |||||
| NI | 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 12.30 | ||||
| NI | 72032 | Paint, Touch-up (1/2oz.) (black) |
|
Immediately | $ 18.69 | ||||
| NI | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | ||||
| NI | WP4396174 | Paint, Touch-up (1/2oz.) (pewter) (Replaces: 4396174) |
|
$ 28.20 | |||||
| NI | 8212605 | Paint, Touch-up (1/2oz.) (ultimate Silver) |
|
$ 16.01 | |||||
| NI | W10157756 | Paint, Touch-up (1/2oz.) (aspen) |
|
$ 14.94 | |||||
| NI | W10162090 | Paint, Touch-up (1/2oz.) (chestnut) |
|
- | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 38.21 | ||||
| NI | 4396175 | Paint, Pressurized Spray (12 Oz.) (pewter) |
|
- | |||||
| NI | 285006 | Paint, Pressurized Spray (12 Oz.) (black) |
|
$ 57.04 | |||||
| NI | 4392901 | Paint, Pressurized Spray (12 Oz) (biscuit) |
|
- |
