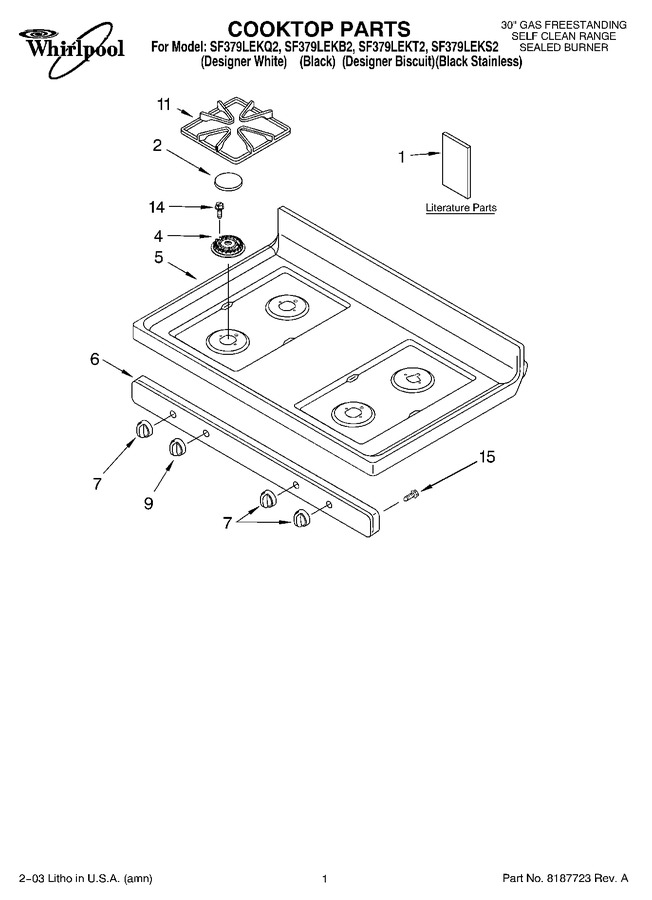

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8522777 | Guide, Use & Care |
|
- | |||||
| 1 | LIT8272223 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8523783 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (instruct, Install (template)) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | WP8273344 | Cap, Burner Lr - Rf (espresso) (Replaces: 8273344) |
|
$ 97.19 | |||||
| 2 | WP3191898 | Cap, Burner (rr) (black) (Replaces: 3191898) |
|
$ 67.62 | |||||
| 2 | 3191899 | Cap, Burner (rr) (grey) |
|
$ 31.21 | |||||
| 2 | WP8273343 | (cap, Burner Rr) (espresso) (Replaces: 8273343) |
|
$ 86.57 | |||||
| 2 | WP3191903 | Cap, Burner (lr - Rf) (grey) (Replaces: 3191903) |
|
$ 177.35 | |||||
| 2 | WP3191901 | Cap, Burner (lr - Rf) (black) (Replaces: 3191901) |
|
$ 118.70 | |||||
| 2 | WP8273345 | Cap, Burner Lf (espresso) (Replaces: 8273345) |
|
$ 160.44 | |||||
| 2 | WP3191905 | Cap, Burner Lf (grey) (Replaces: 3191905) |
|
$ 86.65 | |||||
| 2 | WP3191904 | Cap, Burner (lf) (black) (Replaces: 3191904) |
|
$ 175.39 | |||||
| 4 | WP4455981 | Burner (lf (12k)) (Replaces: 4455981) |
|
Immediately | $ 87.52 | ||||
| 4 | 4455979 | Burner (rr-6k) |
|
$ 28.52 | |||||
| 4 | WP4455980 | Burner (lr - Rf (9k)) (Replaces: 4455980) |
|
$ 62.10 | |||||
| 5 | 8195546 | Cooktop (biscuit) (Replaces: 8272743) |
|
- | |||||
| 5 | 8272251 | Cooktop (white) |
|
- | |||||
| 5 | 8272253 | Cooktop (black) |
|
- | |||||
| 6 | 8523856 | Panel, Manifold (biscuit) |
|
- | |||||
| 6 | 8523855 | Panel, Manifold (black) |
|
$ 167.79 | |||||
| 6 | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 276.74 | |||||
| 7 | WP8273104 | Knob, Control (3) (white) (Replaces: 8273104) |
|
Immediately | $ 17.13 | ||||
| 7 | WP8273103 | Knob, Control (3) (black) (Replaces: 8273103) |
|
Immediately | $ 16.05 | ||||
| 7 | WP8273106 | Knob, Control (3) (biscuit) (Replaces: 8273106) |
|
$ 18.62 | |||||
| 9 | WP8273103 | Knob, Powerburner (black) (Replaces: 8273111) |
|
Immediately | $ 16.05 | ||||
| 9 | WP8273106 | Knob, Powerburner (biscuit) (Replaces: 8273114) |
|
$ 18.62 | |||||
| 9 | WP8273104 | Knob, Powerburner (white) (Replaces: 8273112) |
|
Immediately | $ 17.13 | ||||
| 11 | WPW10447925 | Grate, Burner (4) (grey) (Replaces: 8522850) |
|
Immediately | $ 285.29 | ||||
| 11 | WPW10447925 | Grate, Burner (4) (black) (Replaces: 8522851) |
|
Immediately | $ 285.29 | ||||
| 11 | 8522853 | Grate, Burner (4) (espresso) |
|
$ 0.01 | |||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.13 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
