SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts

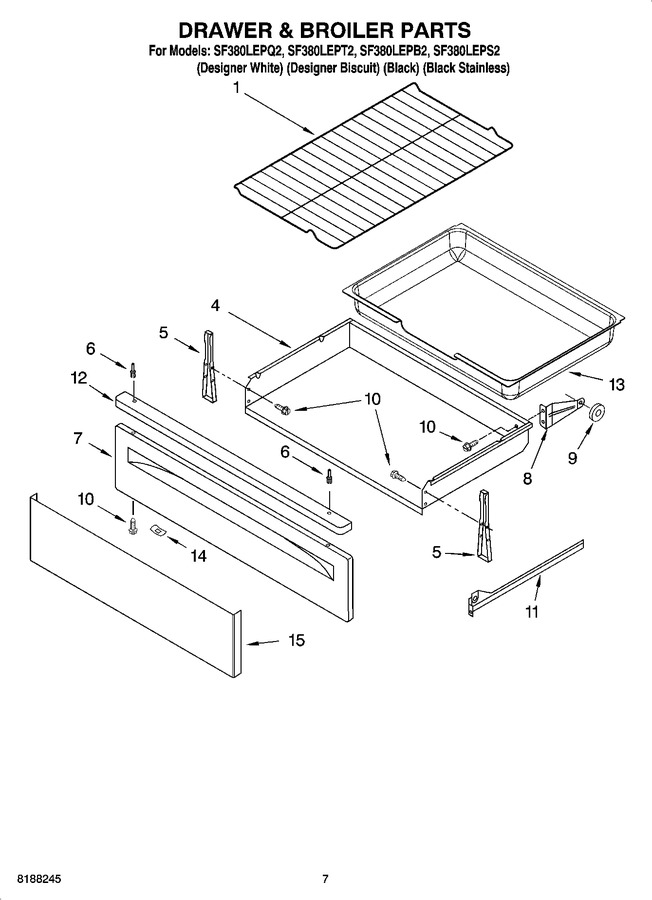

05 - Drawer & Broiler Parts


06 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (3)   (Replaces: 3195710)			Immediately	$ 46.84
4	8272606		Drawer, Storage		Appelez-nous	-
5	W11759228		Bracket, Drawer (2)   (Replaces: 3196817)				$ 28.27
6	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 11.20
6	3196815		Rivet, Push (2) (almond)		Appelez-nous	-
6	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
7	W11230490		Drawer Front (black)   (Replaces: 8053338)				$ 211.59
7	W11230473		Drawer Front (biscuit)   (Replaces: 8272502)		Appelez-nous	-
7	W11230486		Drawer Front (white)   (Replaces: 8053336)				$ 211.49
8	8054069		Bracket, Roller		Appelez-nous	-
9	814229		Roller (2)   (Replaces: 422604)			Immediately	$ 56.92
10	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
11	8274190		Rail Assy, Drawer (left Side)		Appelez-nous	-
11	8274191		Rail Assy, Drawer (right Side)		Appelez-nous	-
12	9757237		Handle, Stainless		Appelez-nous	-
13	9761033		Liner, Drawer		Appelez-nous	-
14	WP9781235		Clip   (Replaces: 9781235)				$ 12.56
15	9755797		Panel, Stainless		Appelez-nous	-
