Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3186189 Endcap (right Hand) Appelez-nous -
1 3186188 Endcap (left Hand) Appelez-nous -
2 3186198 Support, Endcap (left Hand) Appelez-nous -
2 3186199 Support, Endcap (right Hand) Appelez-nous -
3 3195780 Panel, Backguard (includes No.11) Appelez-nous -
4 W10276642 Screw (4)   (Replaces: 4449746) Special Order $ 6.41

5 WPW10110491 Module, Spark   (Replaces: 3186493) In-Stock Immediately $ 322.41

5 WPY706189 Screw   (Replaces: 3196427) In-Stock Immediately $ 7.55

7 3196200 Clip, Spring (2) Special Order $ 10.45

8 W11233072 Screw (5)   (Replaces: 3196178) In-Stock Immediately $ 14.72

8 3195963 Cover, Upper Appelez-nous -
9 3186187 Shield, Heat Appelez-nous -
10 3195964 Cover, Lower Appelez-nous -
10 W11233072 Screw (6)   (Replaces: 3196178) In-Stock Immediately $ 14.72

11 3186200 Bracket, Control Appelez-nous -
12 6610059 Control, Range Appelez-nous -
13 W11233072 Screw, (2)   (Replaces: 3196178) In-Stock Immediately $ 14.72


    View Diagram in Separate Window     Print Icon   Print Part List

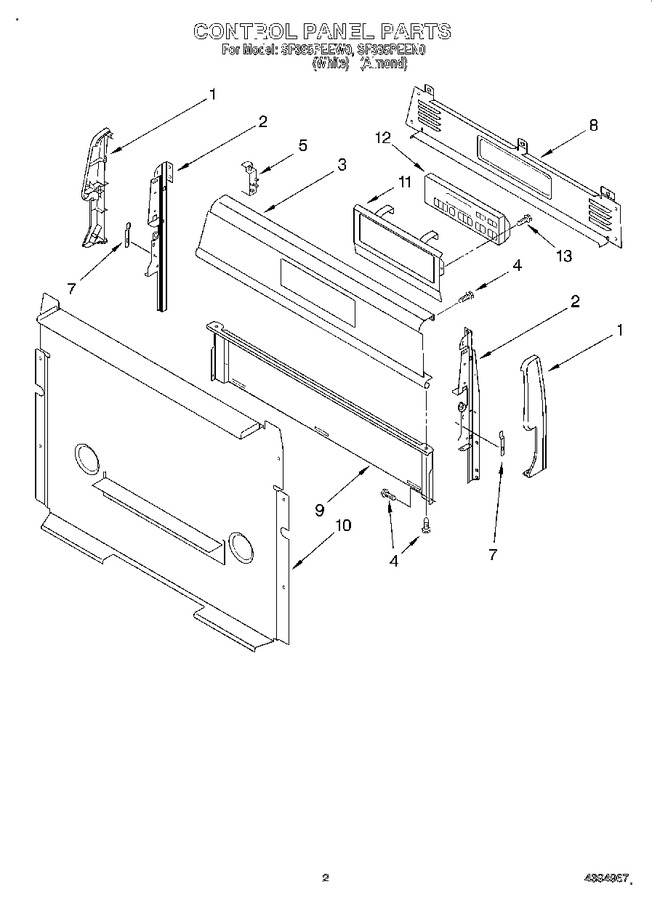

Diagram for SF385PEEW0
