SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel

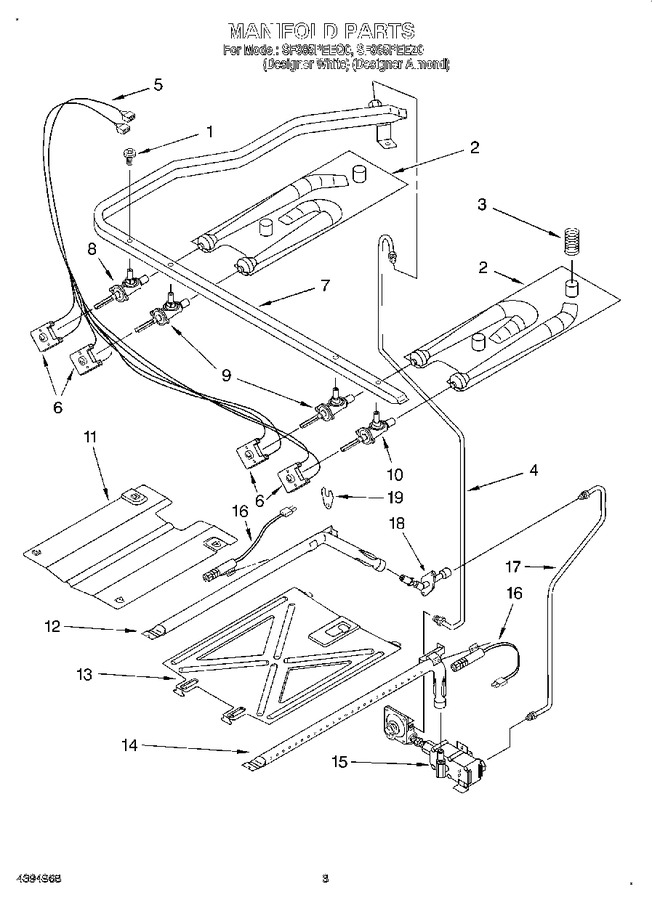

03 - Manifold


04 - Chassis


05 - Drawer And Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186217		Screw, Valve (4)				$ 5.53
2	3195020		Plate, Venturi (right Hand)		Appelez-nous	-
2	3195021		Plate, Venturi (left Hand)		Appelez-nous	-
3	3196459		Spring, Seal (4)		Appelez-nous	-
4	3186497		Tubing (manifold To Regulator)		Appelez-nous	-
5	3196469		Harness, Igniter		Appelez-nous	-
6	3196470		Switch, Spark		Appelez-nous	-
7	W11233072		Screw (3)   (Replaces: 3196178)			Immediately	$ 14.72
7	3186221		Pipe, Manifold		Appelez-nous	-
8	3186402		Valve, 7,500 Btu (lr)		Appelez-nous	-
9	3186401		Valve, 9,500 Btu (lf, Rf)		Appelez-nous	-
10	3186403		Valve, 6,500 Btu (rr)		Appelez-nous	-
11	WP3196175		Screw (4)   (Replaces: 3196175)			Immediately	$ 7.55
11	W10137062		Spreader, Flame (broiler)   (Replaces: 3186012)		Appelez-nous	-
12	3196265		Screw		Appelez-nous	-
12	3196462		Burner, Broiler		Appelez-nous	-
13	3196084		Spreader, Flame (oven)		Appelez-nous	-
13	WP3196175		Screw (2)   (Replaces: 3196175)			Immediately	$ 7.55
14	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
14	3196446		Burner, Bake		Appelez-nous	-
14	3196265		Screw		Appelez-nous	-
15	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 14.72
15	3196545		Valve, Gas Combo		Appelez-nous	-
15	WP3196183		Screw (2)   (Replaces: 3196183)			Immediately	$ 8.18
16	W11684507		Screw (2)   (Replaces: 3196385)				$ 14.27
16	3196447		Igniter, Bake/broil		Appelez-nous	-
17	3186446		Tubing (valve To Broiler Fitting)		Appelez-nous	-
18	W11233072		Screw (2)   (Replaces: 3196176)			Immediately	$ 14.72
18	3186489		Fitting, Broiler				$ 64.58
19	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
19	3196026		Cover, Igniter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
