SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer & Broiler


06 - Door, Optional

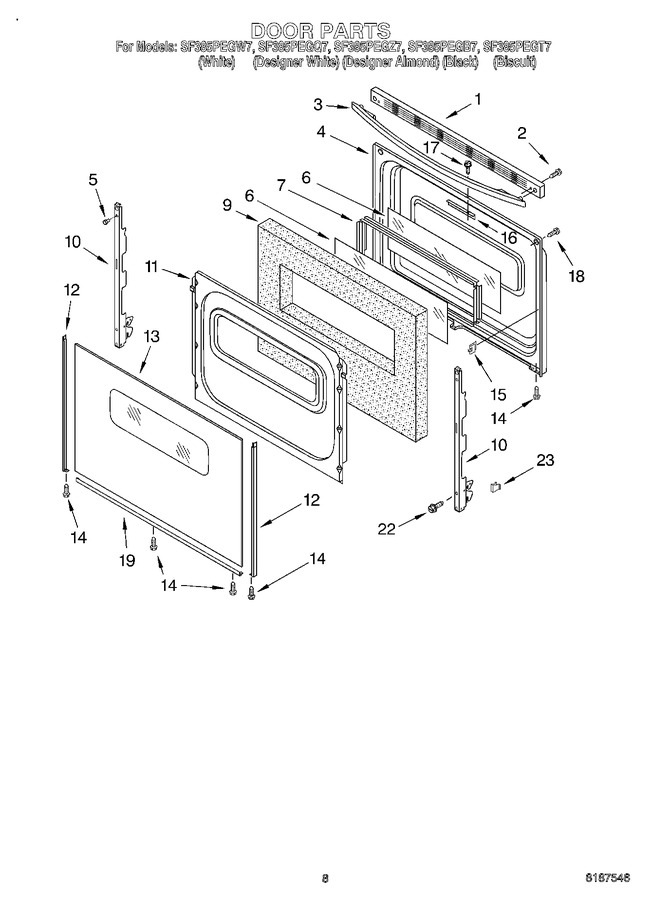

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196819		Trim, Top (black)		Appelez-nous	-
1	8272494		Trim, Top (biscuit)		Appelez-nous	-
1	3196820		Trim, Top (almond)		Appelez-nous	-
1	3196821		Trim, Top (white)		Appelez-nous	-
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202217		Handle, Door (black)   (Replaces: 3195922)				$ 270.65
3	8272495		Handle, Door (biscuit)		Appelez-nous	-
3	3195921		Handle, Door (almond)		Appelez-nous	-
3	WPW10202216		Handle, Door (white)   (Replaces: 3195218)				$ 370.67
4	3186296		Liner, Door		Appelez-nous	-
5	238614		Bumper (2)   (Replaces: 3195809)				$ 84.79
6	WP9758164		Glass, Inner (2)   (Replaces: 3186282)				$ 159.93
7	3186290		Frame, Glass		Appelez-nous	-
9	WPW10278991		Insulation, Door   (Replaces: 8272618)			Immediately	$ 101.37
10	WP8053807		Hinge, Door   (Replaces: 8053807)				$ 101.17
11	9761499		Retainer, Insul.   (Replaces: 3186299)				$ 325.33
12	8184859		Trim, Door Side Left Hand (white)   (Replaces: 3195971)				$ 170.91
12	8184859		Trim, Door Side (left Hand White)   (Replaces: 3195974)				$ 170.91
12	8184860		Trim, Door Side (left Hand Almond)   (Replaces: 3195975)				$ 151.56
12	8184860		Trim, Door Side Left Hand (biscuit Right Hand)   (Replaces: 8272497)				$ 151.56
12	8184858		Trim, Door Side Left Hand (black)   (Replaces: 3195973)				$ 168.85
12	8184860		Trim, Door Side Left Hand (biscuit)   (Replaces: 8272496)				$ 151.56
12	8184860		Trim, Door Side Left Hand (almond)   (Replaces: 3195972)				$ 151.56
12	8184858		Trim, Door Side Left Hand (black)   (Replaces: 3195976)				$ 168.85
13	8053483		Glass, Outer Door (almond)		Appelez-nous	-
13	WP9762476		Glass, Outer Door (white)   (Replaces: 8053481)				$ 332.66
13	WP9762477		Glass, Outer Door (black)   (Replaces: 8053479)				$ 330.12
13	8273525		Glass, Outer Door (biscuit)		Appelez-nous	-
14	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
15	3196025		Clip, Door Glass				$ 20.10
16	3195914		Bracket, Latch		Appelez-nous	-
17	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
18	WP179051		Screw   (Replaces: 3196161)			Immediately	$ 8.42
19	8184858		Trim, Bottom (black)   (Replaces: 3195424)				$ 168.85
19	8184860		Trim, Bottom (almond)   (Replaces: 3195423)				$ 151.56
19	8184859		Trim, Bottom (white)   (Replaces: 3195422)				$ 170.91
19	8184860		Trim, Bottom (biscuit)   (Replaces: 8272499)				$ 151.56
22	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
23	814381		Pin Kit-dr Removal				$ 11.28
23	8273898		Harness, Main		Appelez-nous	-
23	8273967		Lead, Hv - Bake		Appelez-nous	-
23	8273966		Lead, Hv - Broil		Appelez-nous	-
23	8274195		Harness, Electrode		Appelez-nous	-
23	3196896		Clip-wire		Appelez-nous	-
23	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
23	8053527		Clip, Wire		Appelez-nous	-
23	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
23	3196696		Biscuit		Appelez-nous	-
23	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
23	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
23	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
23	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
23	3196925		Clip, Door Stop (2)				$ 9.06
23	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
23	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
23	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
23	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
23	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
23	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
23	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
23	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
23	242831		Wire (14 Ga. 200 C Red)				$ 342.23
23	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
23	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
23	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
23	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
23	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
23	261582		Grease		Appelez-nous	-
23	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
23	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
23	4392899		Biscuit			Immediately	$ 27.77
23	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
23	285006		Paint, Spray 13 Oz. (black)				$ 59.89
23	350942		Primer (white)   (Replaces: 206922)				$ 94.14
23	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
23	978883		Almond (uncut)		Appelez-nous	-
23	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
23	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
23	8273888A		Anti-tip Kit   (Replaces: 814091)				$ 32.62
