SELECT A DIAGRAM

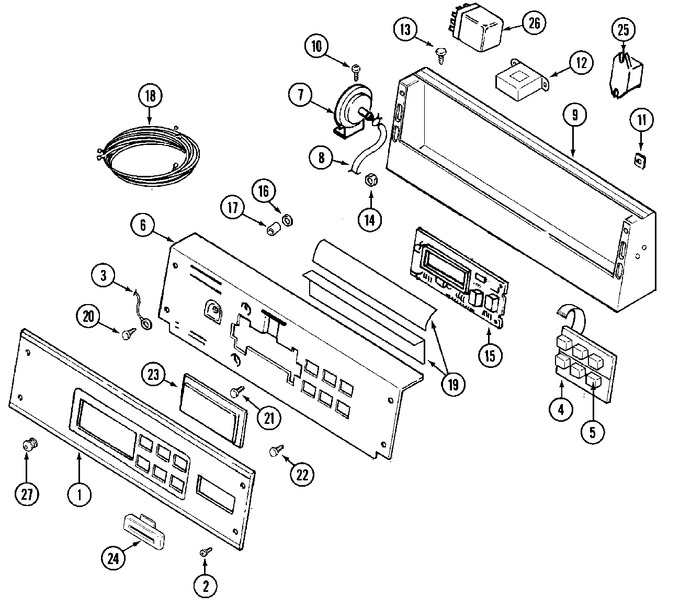

01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Base
06 - Transmission
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Panel, Control (wht) | 10 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 7.30 | ||||
| 003 | NLA | Wire, Ground | 10 |
|
- | ||||
| 004 | WPW10135389 | Control Switch Assembly (Replaces: 206808) | 10 |
|
$ 146.60 | ||||
| 004 | W10756178 | Screw, Control Switch (Replaces: 215527) | 10 |
|
$ 6.29 | ||||
| 005 | WPW10424308 | Pushbutton, Control Switch (Replaces: 215517) | 10 |
|
Immediately | $ 21.44 | |||
| 006 | 22002347 | Bracket, Switch & Back | 10 |
|
- | ||||
| 006 | WPW10143462 | Screw, Bracket (Replaces: 22002354) | 10 |
|
$ 6.30 | ||||
| 007 | NLA | Switch, Pressure | 10 |
|
- | ||||
| 008 | 22002743 | Hose, Pressure Switch | 10 |
|
- | ||||
| 008 | NLA | Clip, Pressure Switch Hose | 10 |
|
- | ||||
| 009 | 33001957 | Console (wht) | 10 |
|
- | ||||
| 010 | WP489128 | Screw, Console (Replaces: 22001996) | 10 |
|
$ 11.40 | ||||
| 011 | 215003 | Fastener, Screw | 10 |
|
- | ||||
| 012 | WPW10131839 | Transformer (Replaces: 22001960) | 10 |
|
$ 140.23 | ||||
| 013 | WP489128 | Screw, Transformer (Replaces: 22001996) | 10 |
|
$ 11.40 | ||||
| 014 | 22001419 | Nut, Transformer | 10 |
|
- | ||||
| 015 | NLA | Board, Control | 10 |
|
- | ||||
| 016 | M0282005 | Locknut, Control Board (Replaces: 912077) | 10 |
|
$ 8.24 | ||||
| 017 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 018 | NLA | Harness, Main Wire | 10 |
|
- | ||||
| 019 | 22001511 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 020 | WP489399 | Screw, Ground Wire (Replaces: 211252) | 10 |
|
$ 7.30 | ||||
| 021 | 215526 | Screw, Circuit Board | 10 |
|
- | ||||
| 022 | W10756178 | Screw, Back Bracket (Replaces: 215527) | 10 |
|
$ 6.29 | ||||
| 023 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 49.92 | ||||
| 023 | 22001973 | Harness, Pr Service | 10 |
|
- | ||||
| 024 | WPW10131115 | Bezel (Replaces: 22001976) | 10 |
|
$ 8.90 | ||||
| 025 | 206824 | Relay, Spst 24vdc | 10 |
|
- | ||||
| 026 | NLA | Relay, Reversing | 10 |
|
- | ||||
| 027 | WP212716 | Bumper, Lid (Replaces: 212716) | 10 |
|
Immediately | $ 8.75 | |||
| 028 | 22002155 | Harness Kit, Reader (12``) | 10 |
|
- |
