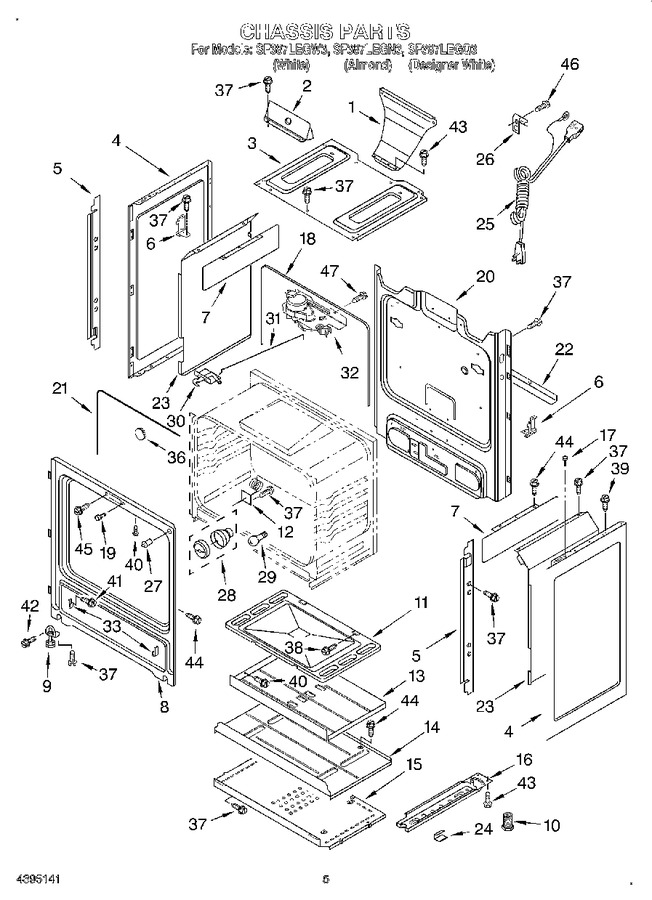

04 - Chassis
05 - Drawer & Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Flue Box (Replaces: 3195727) |
|
$ 157.80 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 3195826) |
|
$ 74.51 | |||||
| 3 | W11379351 | Burner Box (Replaces: 8053504) |
|
$ 64.19 | |||||
| 4 | 8053831 | Panel, Side (2) (almond-textured) |
|
- | |||||
| 4 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 148.71 | |||||
| 5 | 3196137 | Sheild, Heat (2) |
|
- | |||||
| 6 | 3186405 | Brkt, Manifold Mtg (left Hand) |
|
- | |||||
| 6 | 3186406 | Brkt, Manifold Mtg (right Hand) |
|
- | |||||
| 7 | 3196136 | Shield, Heat (2) |
|
- | |||||
| 8 | 3186183 | Frame, Front |
|
- | |||||
| 9 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 87.12 | |||||
| 10 | WPW10058460 | Foot, Rear (2) (Replaces: 312701) |
|
Immediately | $ 8.24 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 231.05 | |||||
| 12 | 3196966 | Sensor, Oven |
|
- | |||||
| 13 | 8053967 | Baffle, Burner (Replaces: 3195370) |
|
$ 315.96 | |||||
| 14 | 8053969 | Shield, Heat (Replaces: 3195402) |
|
$ 113.04 | |||||
| 15 | 8053968 | Shield, Lower (Replaces: 3195373) |
|
- | |||||
| 16 | W11818353 | Rail, Base (2) (Replaces: 8053335) |
|
$ 62.66 | |||||
| 17 | 238614 | Bumper (2) (Replaces: 3195809) |
|
$ 84.79 | |||||
| 18 | 3195737 | Seal, Oven Flange |
|
- | |||||
| 19 | W10877054 | Spacer, Door (Replaces: 3196392) |
|
Immediately | $ 56.06 | ||||
| 20 | 8053507 | Back, Main |
|
- | |||||
| 21 | W11542153 | Seal, Oven (Replaces: 3195023) |
|
Immediately | $ 50.20 | ||||
| 22 | 3196838 | Brace, Main Back |
|
- | |||||
| 23 | 3195726 | Retainer, Insul. (right Hand) |
|
- | |||||
| 23 | 3196523 | Retainer, Insul. (left Hand) |
|
- | |||||
| 24 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 25 | W11582239 | Cord, Power (Replaces: 8054037) |
|
$ 17.59 | |||||
| 26 | 549193 | Clamp, Cord (Replaces: 3196256) |
|
$ 14.06 | |||||
| 27 | WP3196262 | Switch, Door (Replaces: 3196262) |
|
$ 165.47 | |||||
| 28 | W11594027 | Light Socket Assy (Replaces: 3176512) |
|
Immediately | $ 87.01 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 30 | WP9761013 | Latch, Door (Replaces: 3196119) |
|
$ 256.36 | |||||
| 31 | W10078370 | Rod, Latch (Replaces: 3196960) |
|
$ 95.24 | |||||
| 32 | WPW10107830 | Latch, Rear Ass`y (Replaces: 3196958) |
|
$ 339.48 | |||||
| 33 | WP3195546 | Glide, Front (2) (Replaces: 3195546) |
|
Immediately | $ 8.33 | ||||
| 36 | 3196439 | Button, Plug |
|
- | |||||
| 37 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 38 | 3196152 | Screw |
|
$ 8.99 | |||||
| 39 | 3196167 | Screw (almond) |
|
- | |||||
| 39 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 40 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 41 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 42 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 18.60 | |||||
| 43 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 44 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 8.24 | |||||
| 45 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 46 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 47 | W11688737 | Insulation, Back (Replaces: 3195991) |
|
$ 122.73 | |||||
| 47 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 47 | WPW10208653 | Insulation, Wrap (Replaces: 3195037) |
|
Immediately | $ 55.47 |
