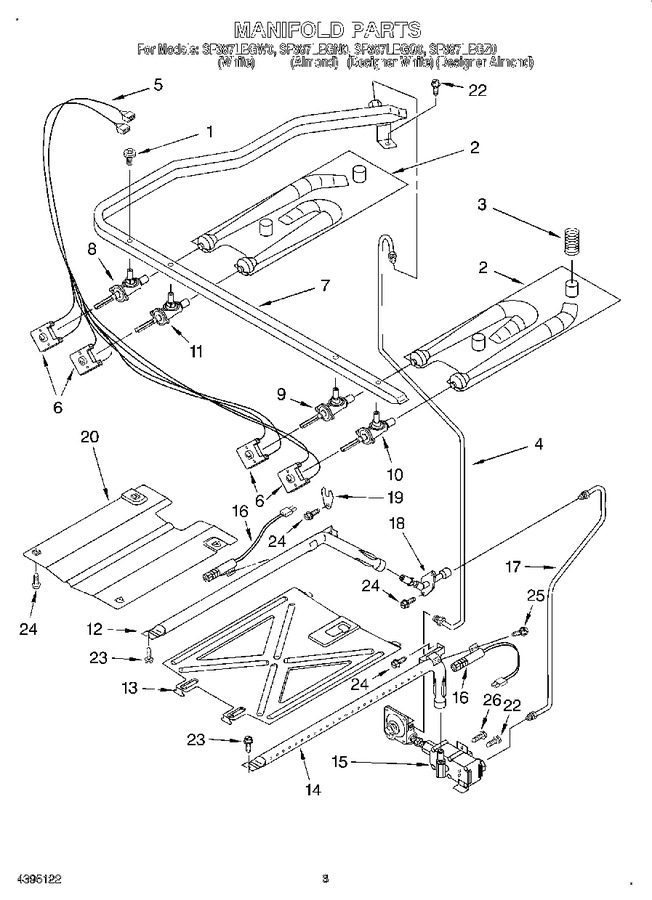

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186217		Screw, Valve				$ 5.53
2	3195021		Plate, Venturi (left Hand)		Appelez-nous	-
2	3195020		Plate, Venturi (right Hand)		Appelez-nous	-
3	3196459		Spring, Seal (4)		Appelez-nous	-
4	3186497		Tubing (manifold To Regulator)		Appelez-nous	-
5	3196469		Harness, Igniter		Appelez-nous	-
6	3196470		Switch, Spark		Appelez-nous	-
7	3186221		Pipe, Manifold		Appelez-nous	-
8	3196848		Valve, 7,500 Btu (lr)		Appelez-nous	-
9	3196847		Valve, 9,500 Btu (rf)		Appelez-nous	-
10	3196849		Valve, 6,500 Btu (rr)		Appelez-nous	-
11	8053358		Valve, 12500 Btu (lf)		Appelez-nous	-
12	3186481		Burner, Broiler		Appelez-nous	-
13	8053256		Spreader, Flame (oven)		Appelez-nous	-
14	3186476		Burner, Bake		Appelez-nous	-
15	3196891		Valve, Gas Combo		Appelez-nous	-
16	WP3186491		Igniter, Bake/broil   (Replaces: 3186491)				$ 204.81
17	3186446		Tubing (valve To Broiler Fitting)		Appelez-nous	-
18	3186489		Fitting, Broiler				$ 64.58
19	3196026		Cover, Igniter		Appelez-nous	-
20	W10137062		Spreader, Flame (broiler)   (Replaces: 8053262)		Appelez-nous	-
22	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
23	3196265		Screw		Appelez-nous	-
24	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
25	W11684507		Screw   (Replaces: 3196385)				$ 13.59
26	8053368		Spuds, Lp Gas (kit Of 4)		Appelez-nous	-
26	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.75
26	814433		Spuds, Natural Gas (kit Of 4)		Appelez-nous	-
