SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls


03 - Crisper Assy


04 - Deli And Ref Shelf


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Fz Door And Facade


08 - Fz Shelf


09 - Handles And Trim


10 - Hinges


11 - Ice Bucket Assy


12 - Light Covers And Toe Grille


13 - Lights And Ice Maker


14 - Machine Compartment


15 - Ref/fz Door And Shelf


16 - Supplemental Information


17 - Wiring Information

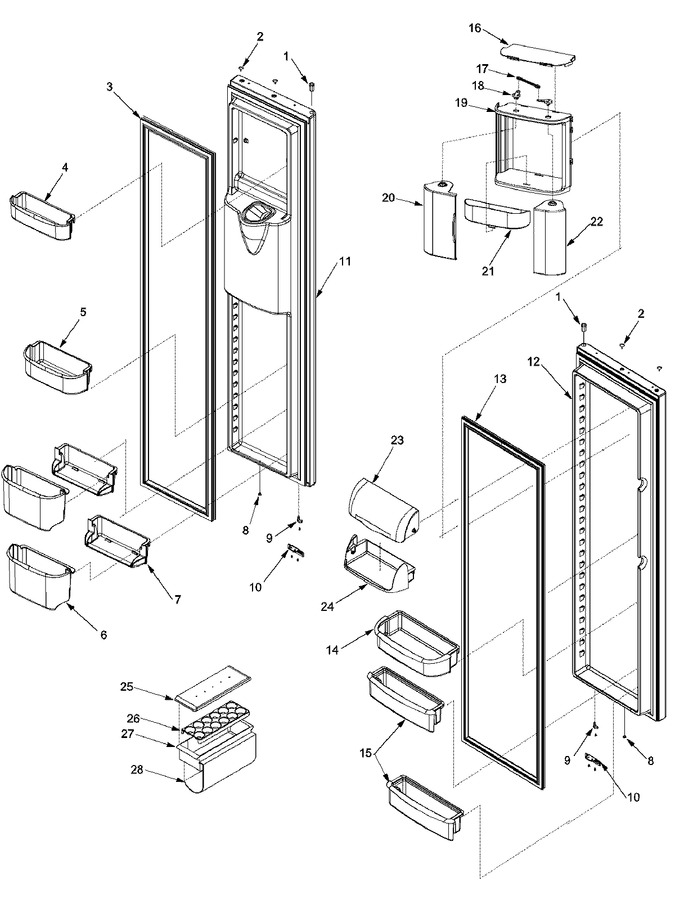

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10961001		Bushing, Door (wht)		Appelez-nous	-
2	M0311605		Plug, Button (wht)		Appelez-nous	-
3	12591502W		Gasket, Fz Dr (wht)		Appelez-nous	-
4	12556901		Bucket, Upr Fz Dr		Appelez-nous	-
5	12557501		Bucket, Lwr Fz Dr				$ 17.64
6	67002264		Bucket, Fz Tilt Out		Appelez-nous	-
7	12569401		Frame, Tilt Bucket		Appelez-nous	-
8	A3080001		Plug, Button (blk)		Appelez-nous	-
9	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
9	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
10	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
10	12636401W		Stop, Door (wht)		Appelez-nous	-
11	67003135		Fz Dr Foam Assy (wht)		Appelez-nous	-
12	67002205		Ref Dr Foam Assy(wht)		Appelez-nous	-
13	12591501W		Gasket, Ref Dr (wht)		Appelez-nous	-
14	12556602		Bucket, Ref Door (gallon)				$ 36.35
15	67002204		Bucket, 22 Ref		Appelez-nous	-
16	67002291		Cover, Chiller		Appelez-nous	-
17	67002292		Linkage, Ctr Chiller		Appelez-nous	-
18	67002293		Linkage, Chiller				$ 11.76
19	67002294		Frame, Large Chiller		Appelez-nous	-
20	67002295		Door, Large Chiller (lt)		Appelez-nous	-
21	67002296		Tray, Chiller				$ 26.66
22	67002297		Door, Large Chiller (rt)		Appelez-nous	-
23	67001325		Door, Dairy		Appelez-nous	-
24	67002304		Tray, Dairy		Appelez-nous	-
25	10436404		Lid, Utility				$ 60.85
26	10436506		Tray, Egg				$ 8.28
27	10423131		Bin, Utility				$ 31.13
28	10448903		Rack, Bottle		Appelez-nous	-
