01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts

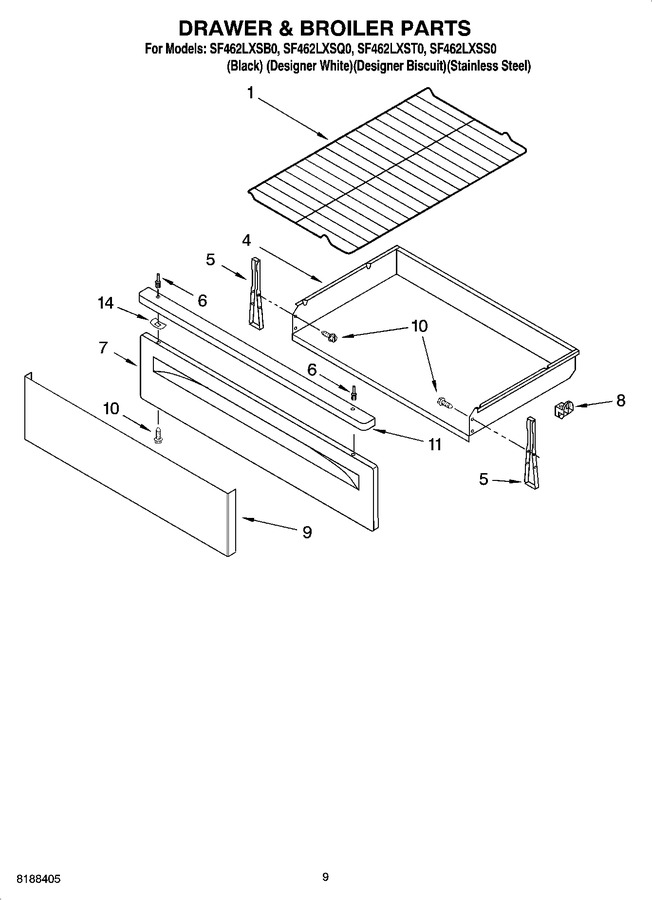

06 - Drawer & Broiler Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 4 | 9761031 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 26.17 | |||||
| 6 | 3196815 | Rivet, Push (2) (almond) |
|
- | |||||
| 6 | WP3196813 | Rivet, Push (2) (black) (Replaces: 3196813) |
|
Immediately | $ 10.67 | ||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 10.54 | ||||
| 7 | W11230486 | Panel, Drawer Front (white) (Replaces: 8053336) |
|
$ 201.42 | |||||
| 7 | W11230473 | Panel, Drawer Front (biscuit) (Replaces: 8272502) |
|
- | |||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: 8053338) |
|
$ 201.51 | |||||
| 8 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 9 | 9755797 | Panel, Stainless |
|
- | |||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 11 | 9757237 | Handle, Door (stainless Model) |
|
- | |||||
| 14 | WP9781235 | Clip (Replaces: 9781235) |
|
$ 11.96 | |||||
| WP3196174 | Screw, Grnd Harns (Replaces: 3196174) |
|
Immediately | $ 7.82 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 84.76 | ||||||
| 3195927 | Tie,wire |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 19.55 | ||||||
| W11244557 | Screw (Replaces: 3196173) |
|
$ 13.61 | ||||||
| 3196696 | Clip, Harness |
|
- | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 4396923 | Pan - Broiler |
|
Immediately | $ 57.82 | |||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 83.07 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 49.29 | ||||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 27.18 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 57.04 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 89.66 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 9762433 | Harness, Main (eoc Pyro) |
|
- | ||||||
| 8524207 | Harness, Wire Bake - Broil |
|
$ 52.99 | ||||||
| 8523599 | Harness, Wire (cooktop Spark) |
|
$ 139.59 | ||||||
| W10045060 | Harness, Wire (dsi Ground) |
|
$ 8.54 | ||||||
| 3196896 | Clip-wire |
|
- |
