Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11117769 Leg, Leveling   (Replaces: 63-5519) G In-Stock Immediately $ 19.37

2 53-0120 Clip, Front Panel G Special Order $ 11.32

3 16515 Clip, Wiring   (Replaces: 25-7027) G Special Order $ 20.53

4 WP90767 Screw   (Replaces: 25-7741) G In-Stock Immediately $ 8.25

4 53-0153 Shield, Wiring G Appelez-nous -
5 W10410996 Motor & Pulley Assy.   (Replaces: 31001015) J In-Stock Immediately $ 370.19

5 W10410996 Motor & Pulley Assy (115v,60hz   (Replaces: 53-2275) G In-Stock Immediately $ 370.19

6 53-0693 Switch, Motor G Appelez-nous -
7 53-1932 Motor Mtg. Brkt. G Appelez-nous -
7 25-7811 Screw G Appelez-nous -
8 WP660658 Clamp, Motor   (Replaces: 53-0214) G Special Order $ 8.22

9 WP53-2287 Idler Assy.   (Replaces: 53-2287) G Special Order $ 146.66

10 53-2209 Spring, Idler G Appelez-nous -
11 WP90767 Screw   (Replaces: 25-2134) G In-Stock Immediately $ 8.25

11 53-0134 Duct, Exhaust G Appelez-nous -
12 53-1801 Housing, Blower G Appelez-nous -
13 12001324 Seal, Blower Housing   (Replaces: 53-0203) G Special Order $ 218.60

14 31001043 Wheel, Blower J In-Stock Immediately $ 134.01

14 53-0106 Blower Wheel G Special Order $ 58.02

15 WP312967 Clamp   (Replaces: 25-7823) G In-Stock Immediately $ 12.46

16 25-7855 Ring, Retaining G Special Order $ 8.67

17 53-1933 Cover, Blower Housing G Appelez-nous -
17 WP33002917 Screw   (Replaces: 25-7807) G In-Stock Immediately $ 8.48

18 WP90767 Screw   (Replaces: 25-2134) G In-Stock Immediately $ 8.25

18 53-0170 Thermostat, Lo-limit (120/110) G Appelez-nous -
18 WP53-1107 Thermostat, Control (146/121)   (Replaces: 53-1107) G Special Order $ 94.79

19 LA-1006 Glide Kit, Tumbler G In-Stock Immediately $ 29.31

19 WP31001470 Lh Cyl Glide   (Replaces: 53-0185) G Special Order $ 78.58

20 WP31001356 Rh Gld Cushion   (Replaces: 53-0724) G Special Order $ 88.85

21 WP31001469 Rh Cyl Glide   (Replaces: 53-0183) G Special Order $ 77.77

22 WP31001356 Cushion, Tumbler Glide   (Replaces: 53-1684) G Special Order $ 88.85

23 25-7699 Strain Relief G Appelez-nous -
24 25-7674 Screw G Appelez-nous -
25 53-1026 Guide, Vane Inlet G Appelez-nous -
26 WP12990527 Screw, Sems   (Replaces: 25-3457) G In-Stock Immediately $ 8.76

27 12002126 Front Roller Kit   (Replaces: LA-1007) G Special Order $ 149.23

27 LA-1008 Rr Roller Kit G Special Order $ 66.73

28 53-1625 Brace, Tumbler Support G Special Order $ 26.64

29 25-7815 Washer G Appelez-nous -
30 25-7957 Pushnut G Special Order $ 6.41

31 WP31001344 Pulley, Idler   (Replaces: 53-1628) G In-Stock Immediately $ 50.60

32 WP53-2287 Arm, Idler   (Replaces: 53-2250) G Special Order $ 146.66


    View Diagram in Separate Window     Print Icon   Print Part List

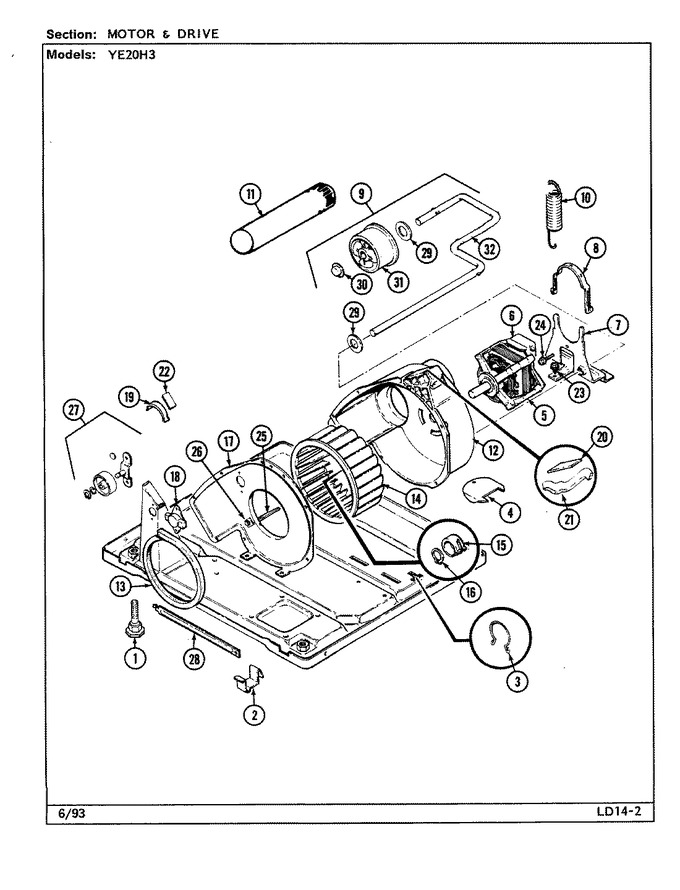

Diagram for YE20HN3
