SELECT A DIAGRAM

01 - Cooktop And Manifold


02 - Oven

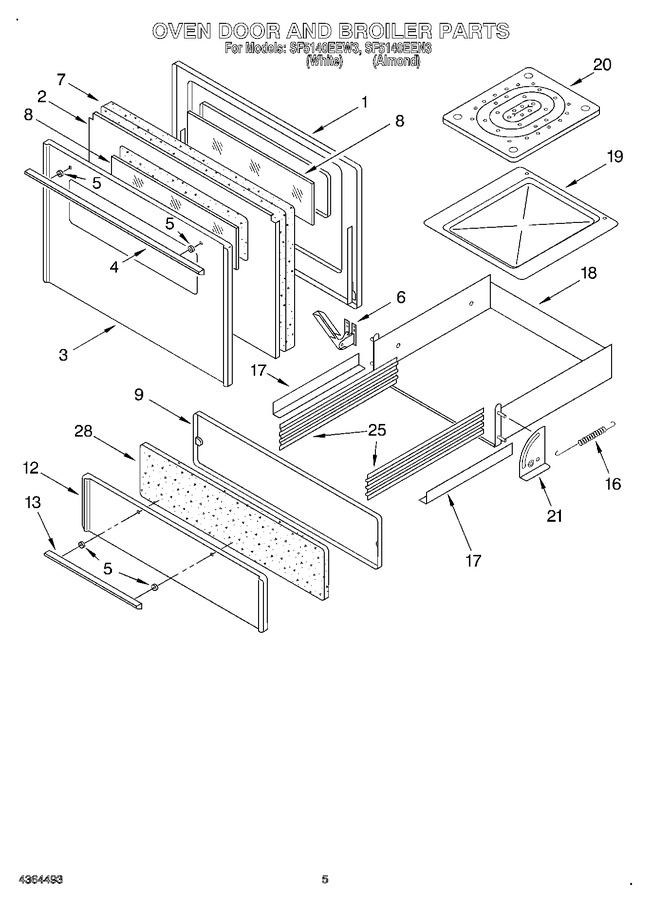

03 - Oven Door And Broiler


04 - Backguard


05 - Fifth Burner, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364326		Liner, Door		Appelez-nous	-
2	4364324		Panel, Inner Door		Appelez-nous	-
3	4364322		Panel, Oven Door (white)		Appelez-nous	-
3	4364323		Panel, Oven Door (almond)		Appelez-nous	-
4	4364070		Handle, Door		Appelez-nous	-
5	4364057		Screw, 10-24 X 3/8		Appelez-nous	-
5	4364055		Spacer, Handle		Appelez-nous	-
6	4364328		Hinge, Oven Door		Appelez-nous	-
7	4364325		Insulation, Door		Appelez-nous	-
8	4364327		Window, Oven		Appelez-nous	-
9	4364122		Liner, Brlr Drawer		Appelez-nous	-
12	4364052		Panel, Broiler Door (white)		Appelez-nous	-
12	4364053		Panel, Broiler Door (almond)		Appelez-nous	-
13	4364054		Handle, Drawer		Appelez-nous	-
16	4364060		Spring, Broiler		Appelez-nous	-
17	4364062		Broiler Drawer Runner (right)		Appelez-nous	-
17	4364061		Broiler Drawer Runner (left)		Appelez-nous	-
18	4364063		Liner, Broiler		Appelez-nous	-
19	4364064		Broiler Pan		Appelez-nous	-
20	4364065		Grill, Broiler		Appelez-nous	-
21	WP488130		Hinge, Broiler (hex Nut, 10-24)   (Replaces: 4364069)				$ 6.59
21	4364067		Hinge, Broiler (right)		Appelez-nous	-
21	4364066		Hinge, Broiler (left)		Appelez-nous	-
21	4364068		Hinge, Broiler (screw, 10-24 X 3/8)		Appelez-nous	-
25	4364123		Glide, Broiler Pan		Appelez-nous	-
28	4364056		Insulation, Broiler Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
