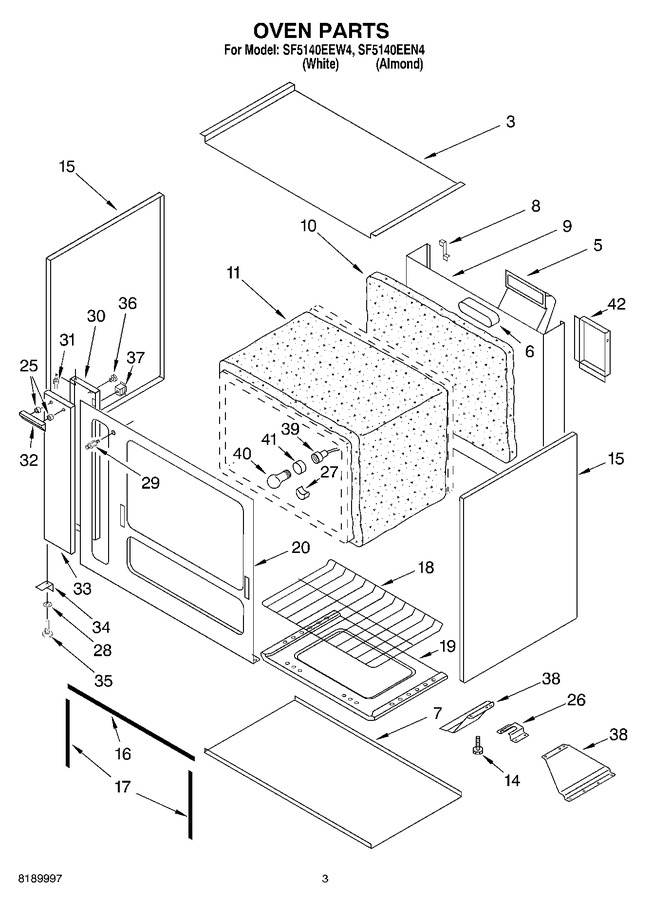

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	4364289		Bottom, Burner Box		Appelez-nous	-
5	4364074		Flue Box		Appelez-nous	-
6	4364075		Ring, Flue Box		Appelez-nous	-
7	4364290		Bottom, Main		Appelez-nous	-
8	4364133		Brace, Back		Appelez-nous	-
9	4364291		Main Back		Appelez-nous	-
10	4364078		Insulation, Back		Appelez-nous	-
11	4364079		Insulation, Wrap		Appelez-nous	-
14	W11673271		Leveler Leg (4)   (Replaces: 4364080)				$ 28.46
15	4364082		Panel, Side (almond)		Appelez-nous	-
15	4364081		Panel, Side (white)		Appelez-nous	-
16	4364083		Gasket, Oven Top		Appelez-nous	-
17	4364084		Gasket, Oven Side		Appelez-nous	-
18	4364085		Rack, Oven		Appelez-nous	-
19	4364086		Bottom, Oven		Appelez-nous	-
20	4364304		Frame, Front		Appelez-nous	-
25	4364055		Spacer, Handle		Appelez-nous	-
26	8190785		Anti-tip Bracket   (Replaces: 4364088)		Appelez-nous	-
27	4364130		Clip, Oven Bulb		Appelez-nous	-
28	4364340		Spacer, Door Hinge		Appelez-nous	-
29	4364294		Catch, Door Strike		Appelez-nous	-
30	8189996		Liner, Comp. Door		Appelez-nous	-
31	4364296		Pin, Upper Hinge		Appelez-nous	-
32	4364297		Handle, Comp. Door		Appelez-nous	-
33	8189995		Panel, Comp. Door (almond)		Appelez-nous	-
33	8189994		Panel, Comp. Door (white)		Appelez-nous	-
34	4364300		Bracket, Hinge		Appelez-nous	-
35	4364301		Pin, Lower Hinge		Appelez-nous	-
36	4364305		Bumper, Rubber		Appelez-nous	-
37	4364157		Strike, Door		Appelez-nous	-
38	4364090		Support, Side (right)		Appelez-nous	-
38	4364089		Support, Side (left)		Appelez-nous	-
39	4364091		Receptacle, Light		Appelez-nous	-
40	8009		Bulb, Light   (Replaces: 4364092)			Immediately	$ 17.51
41	4364093		Ring, Oven Light		Appelez-nous	-
42	4364094		Box, Power		Appelez-nous	-
